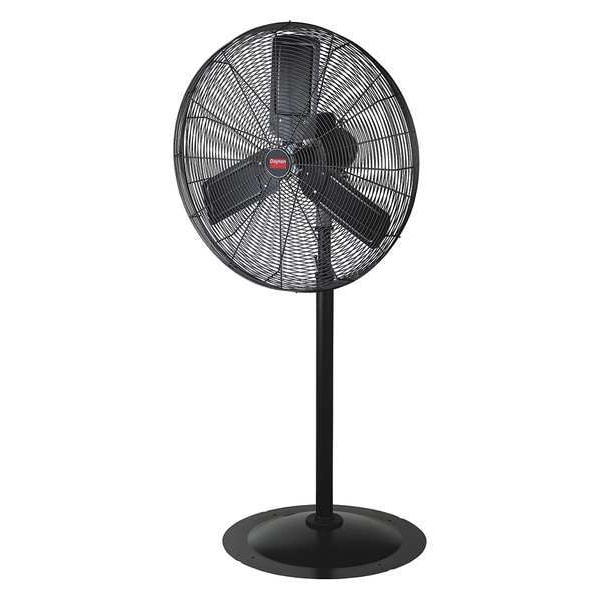

Light Duty Industrial Fan, Pedestal Mount, 24 in Blade Dia, 115V, 3,510/6,400 cfm, Oscillating
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 3,510/6,400 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 74 dBA |
| Item | Industrial Fan |
| Max. Ambient Temp. | 104 deg F |
| Hz | 60 |
| Includes | Pedestal, Column and Mounting Hardware |
| Wire Guard Finish | Gloss Powder Coated |
| Motor Insulation | Class B |
| NEMA Plug Configuration | 5-15p |
| Motor RPM | 1,100/850 RPM |
| Height | 74-1/2 in |
| Housing Material | Steel |
| Application | Spot Cooling and People Cooling |
| CFM Low | 3,510 |
| Motor Type | Permanent Split Capacitor |
| Bearing Type | Ball |
| Motor Enclosure | Totally Enclosed Air Over |
| Shaft Dia. | 1/2 in |
| Requires | Assembly |
| Number of Blades | 3 |
| Air Velocity @ 20 Ft. | 440/285 fpm |
| Watts | 285/210 W |
| Fan Mounting Location | Pedestal |
| Max. Depth | 27-1/4 in |
| Air Velocity @ 10 Ft. | 800/480 fpm |
| Assembled | No |
| Width | 27-1/4 in |
| Environmental Applications | Industrial |
| Standards | cULus Listed, OSHA compliant wire guards |
| Fan Style | Light Duty |
| CFM/Watt | 21.3 |
| Number of Conductors | 3 |
| Thermal Protection | Automatic Reset |
| Mobile/Stationary | Stationary |
| Guard Material | Steel |
| CFM High | 6,400 |
| Air Velocity @ 40 Ft. | 150/100 fpm |
| Fan Accessory Style | Standard |
| Base Dia. | 27 in |
| Fan Housing Material | Steel |
| Height Adjustment | 59 to 74-1/2 in |
| Amps | 2.8/2.1 |
| RPM | 1100/850 |
| Fan Cord Length | 10 ft |
| Depth | 27-1/4 in |
| Assembly Required | Yes |
| Color | Black |
| Wheeled Base | Stationary |
| Material | Steel |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
