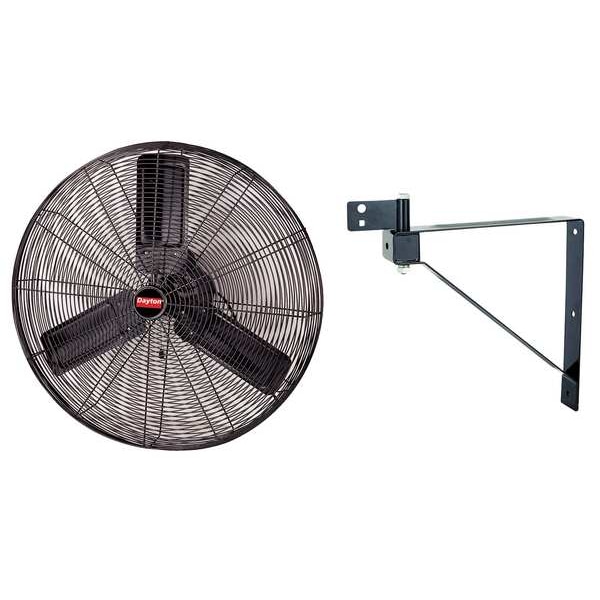

Light Duty Industrial Fan W/ 30 in Blade Dia, 4650/7250 CFM, 115VAC, 1/4 hp, 9 ft Cord
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 4650/7250 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 77 dBA |
| Item | Industrial Fan |
| Guard Material | Steel |
| Width | 33 in |
| Motor Insulation | Class B |
| Shaft Dia. | 17 mm |
| CFM High | 7,250 |
| Motor Enclosure | Open Air Over |
| Housing Material | Steel |
| Includes | Wall/Ceiling Bracket and Secondary Safety Support Cable |
| Motor Type | Permanent Split Capacitor |
| Assembled | No |
| Thermal Protection | Automatic Reset |
| Air Velocity @ 10 Ft. | 1,010/680 fpm |
| Application | Spot Cooling and People Cooling |
| Fan Mounting Location | Wall, Ceiling |
| Wire Guard Finish | Gloss |
| Watts | 320/225 W |
| CFM/Watt | 19.9/24.3 |
| Standards | cULus Listed, OSHA compliant wire guards |
| Hz | 60 |
| CFM Low | 4,650 |
| Number of Blades | 3 |
| Air Velocity @ 60 Ft. | 280/250 fpm |
| Max. Ambient Temp. | 104 deg F |
| Motor RPM | 1,100/900 RPM |
| Outside Dia. | 33 in |
| Fan Accessory Style | Standard |
| Height | 34-1/2 in |
| Environmental Applications | Industrial |
| Mobile/Stationary | Stationary |
| Air Velocity @ 20 Ft. | 715/480 fpm |
| Requires | Assembly |
| Air Velocity @ 40 Ft. | 370/350 fpm |
| NEMA Plug Configuration | 5-15p |
| Number of Conductors | 3 |
| Max. Depth | 24 in |
| Fan Style | Light Duty |
| Bearing Type | Ball |
| Amps | 2.9/1.9 |
| Depth | 24 in |
| RPM | 1100/900 |
| Height Adjustment | Fixed Height |
| Fan Cord Length | 9 ft |
| Wheeled Base | Stationary |
| Assembly Required | Yes |
| Color | Black |
| Fan Housing Material | Steel |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
