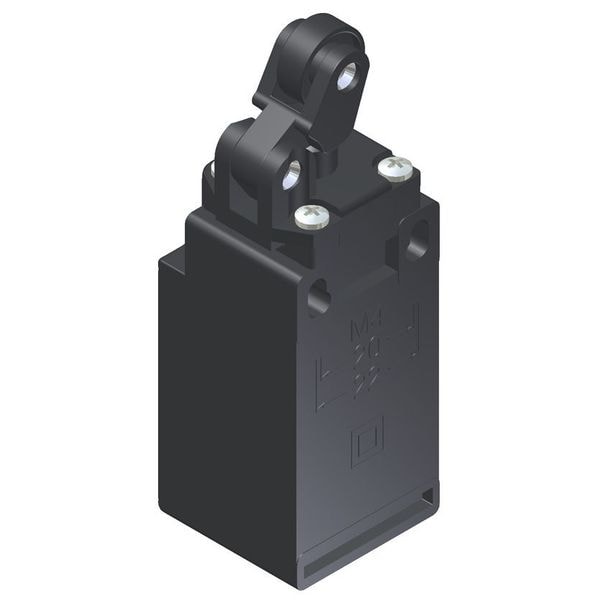

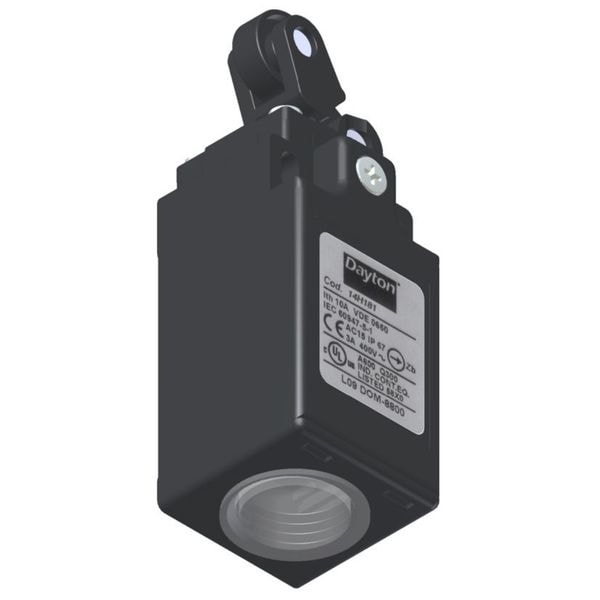

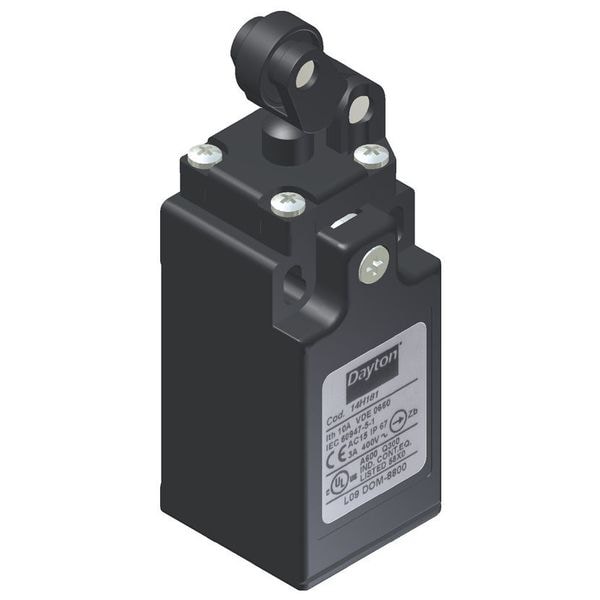

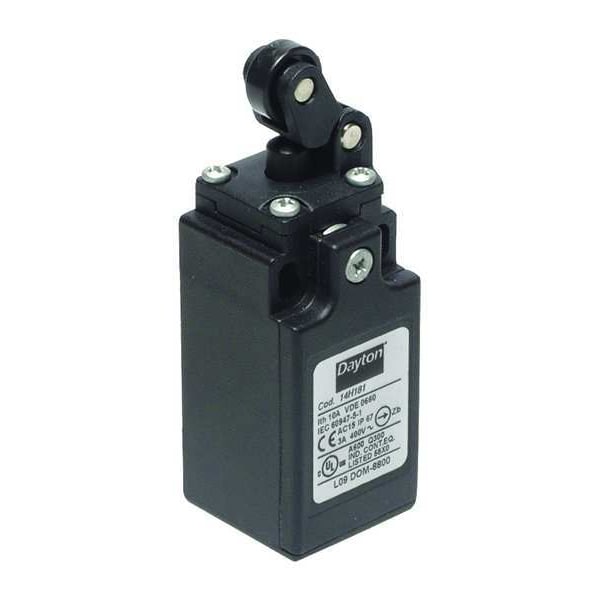

Interruptor de límite, émbolo, palanca de rodillo, 1NC/1NO, 10A @ 480V CA, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller Lever |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 480 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Style | Horizontal Roller Lever |
| Actuator Length - Limit Switch | 1.61 in |
| Actuator Location (Limit Switch) | Top |
| Movement | Horizontal |
| Body Width - Limit Switch | 1.21 in |
| Boot Sealed Actuator - Limit Switch | No |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Material | Thermoplastic |
| IP Rating | 66 |
| Travel | Maximum Pre-Travel N/A, Minimum Over-Travel N/A |
| Contact Form | 1NC, 1NO |
| Roller Dia. | 14 mm |
| Standards | CE, CSA, UL |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Depth | 1.22 in |
| Operating Temp. Range | 32 to 185 deg F |
| Body Depth - Limit Switch | 1.21 in |
| Wiring Entry | 1/2 in NPT |
| Electrical Connection | 14 NPT Conduit Wiring Entry |
| Series | Dayton |
| DC Contact Rating | Not Rated |
| Body Height - Limit Switch | 2.46 in |
| Actuator Location | Top |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Roller Width | 5.5 mm |
| Body Style (Limit Switch) | Miniature |
| Amps | 10 |
| Contact Form - Limit Switch | 1NO, 1NC |
| Stem Thread - Limit Switch | No Stem |
| NEMA Rating | No Nema Rating |
| Actuator Style (Limit Switch) | Plunger, Roller Lever |
| Limit Switch Style | General Purpose Limit Switch |
| Operating Force | 22 oz |
| Voltage Rating | 480VAC |
| Mounting Hole Spacing - Limit Switch | 0.87 in |
| Height | 3.62 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| AC Contact Rating | 10 A @ 480 V |
| Width | 1.22 in |
| Actuator Length | 1.61 in |
| Shop By | Closeouts |
| Directional Movement | Linear |
| Body Depth | 1.21 in |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Diameter | 0.16 in |
| Mounting Hole Horizontal Center to Center Distance | 22 mm |
| Operating Temperature - Minimum | 32 deg F |
| Mounting Style | Surface |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Maximum | 185 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Operating Force - Maximum | 22 ozf |
| Number of Mounting Holes | 2 |
| Roller Diameter | 0.55 in |
| Overtravel | Not Applicable |
| Body Height | 2.46 in |
| Body Width | 1.21 in |
| Pretravel | Not Applicable |
| Package Quantity | 1 |
