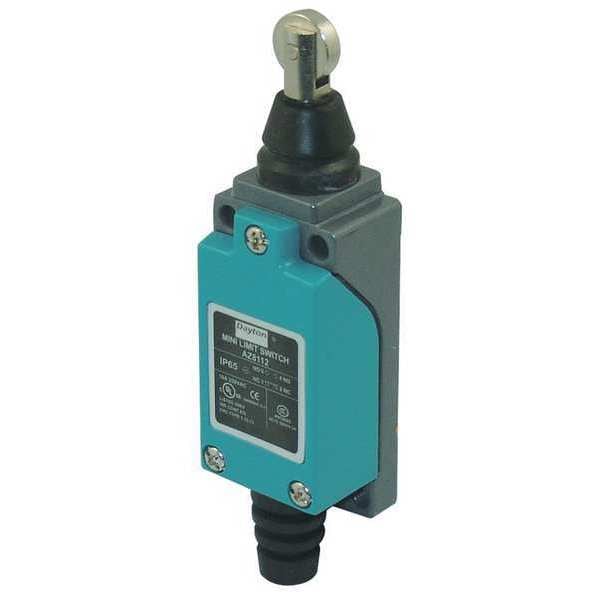

Interruptor de límite, émbolo, rodillo, SPDT, 10A @ 300V AC, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 300 V |
| DC Contact Rating - Limit Switch | 10 A @ 300 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Boot Sealed Actuator (Limit Switch) | No |
| Actuator Location | Top |
| Voltage Rating | 300VAC/DC |
| Electrical Connection | Screw Terminals |
| Number of Poles | 1 |
| Amps | 10 |
| Body Depth - Limit Switch | 1.01 in |
| Actuator Style (Limit Switch) | Plunger, Roller |
| DC Contact Rating | 10 A @ 300 V |
| Height | 4.42 in |
| Actuator Location (Limit Switch) | Top |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Limit Switch Style | General Purpose Limit Switch |
| Roller Dia. | 12.7 mm |
| Body Style (Limit Switch) | Miniature |
| Mounting Hole Spacing - Limit Switch | 2.21 in x 0.83 in |
| Stem Thread - Limit Switch | No Stem |
| Body Height - Limit Switch | 2.41 in |
| Actuator Length | 1.51 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Mounting Hole - Limit Switch | (4) 0.20 in dia |
| Width | 1.12 in |
| Travel | Maximum Pre-Travel N/A, Minimum Over-Travel N/A |
| Standards | CE, CSA, UL |
| IP Rating | 65 |
| AC Contact Rating | 10 A @ 300 V |
| Roller Width | 3.8 mm |
| Body Width - Limit Switch | 1.12 in |
| Boot Sealed Actuator - Limit Switch | No |
| Operating Force | 9 N-m |
| Operating Temp. Range | -14 to 158 deg F |
| Movement | Vertical |
| Actuator Length - Limit Switch | 1.51 in |
| Contact Form | SPDT |
| NEMA Rating | 1 |
| Depth | 1.01 in |
| Actuator Style | Top Roller Plunger |
| Contact Form - Limit Switch | SPDT |
| Series | Dayton |
| Body Height | 2.41 in |
| Directional Movement | Linear |
| Roller Diameter | 1/2 in |
| Operating Temperature - Minimum | -14 deg F |
| Mounting Style | Surface |
| Number of Mounting Holes | 4 |
| Mounting Hole Vertical Center to Center Distance | 56 mm |
| Overtravel | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Pretravel | Not Applicable |
| Operating Torque - Maximum | 79.66 in-lb |
| Boot Sealed Actuator | No Boot Included |
| Body Width | 1.12 in |
| Mounting Hole Diameter | 0.2 in |
| Mounting Hole Horizontal Center to Center Distance | 21 mm |
| Wireless Network Interface | Not Applicable |
| Body Depth | 1.01 in |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
