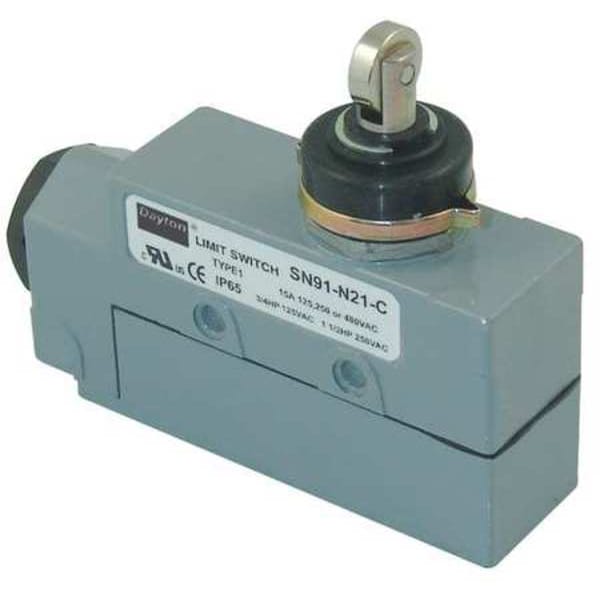

Interruptor de límite, pistón, rodillo, SPDT, 15A @ 480V CA, Ubicación del actuador: parte superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 480 V |
| DC Contact Rating - Limit Switch | 15 A @ 480 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Electrical Connection | Screw Terminals |
| Width | 3.39 in |
| Number of Poles | 1 |
| AC Contact Rating | 15 A @ 480 V |
| Boot Sealed Actuator - Limit Switch | Yes |
| Limit Switch Style | General Purpose Limit Switch |
| Body Height - Limit Switch | 1.76 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Wiring Entry | 1/2 in NPT |
| Actuator Style | Roller Plunger, Boot Sealed |
| Operating Force | 18 oz |
| Body Width - Limit Switch | 3.39 in |
| Contact Form | SPDT |
| Travel | Maximum Pre-Travel 1mm, Over Travel 3.5mm |
| Basic Actuator Style (Limit Switch) | Plunger |
| Body Depth - Limit Switch | 1.01 in |
| Voltage Rating | 480VAC/DC |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Mounting Hole - Limit Switch | (2) 0.21 in dia |
| NEMA Rating | 13, 3, 4 |
| Actuator Location (Limit Switch) | Top |
| Movement | Vertical |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Actuator Location | Top |
| Height | 3 in |
| IP Rating | 65 |
| Depth | 1.01 in |
| Amps | 15 |
| Contact Form - Limit Switch | SPDT |
| DC Contact Rating | 15 A @ 480 V |
| Series | Dayton |
| Body Style (Limit Switch) | Miniature |
| Operating Temp. Range | -14 to 176 deg F |
| Stem Thread - Limit Switch | No Stem |
| Standards | CE, CSA, UL |
| Boot Sealed Actuator | Boot Included |
| Mounting Hole Diameter | 0.21 in |
| Directional Movement | Linear |
| Mounting Style | Surface |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Operating Temperature - Maximum | 176 deg F |
| Operating Temperature - Minimum | -14 deg F |
| Overtravel | 0.14 in |
| Wireless Network Interface | Not Applicable |
| Body Width | 3.39 in |
| Number of Mounting Holes | 2 |
| Body Height | 1.76 in |
| Pretravel | 0.04 in |
| Body Depth | 1.01 in |
| NEMA Enclosure Rating | 4, 13, 3 |
| Operating Force - Maximum | 18 ozf |
| Action | A |
| Package Quantity | 1 |
