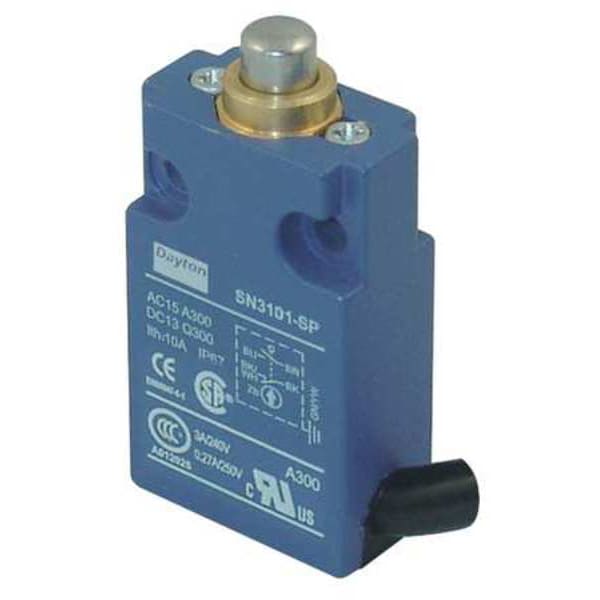

Interruptor de límite, émbolo, SPDT, 10A @ 300V AC, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 300 V |
| DC Contact Rating - Limit Switch | 10 A @ 300 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Contact Form - Limit Switch | SPDT |
| Operating Temp. Range | -14 to 185 deg F |
| Body Width - Limit Switch | 1.18 in |
| Contact Form | SPDT |
| Body Depth - Limit Switch | 0.63 in |
| Body Height - Limit Switch | 1.97 in |
| AC Contact Rating | 10 A @ 300 V |
| Standards | CE, CSA, UL |
| Number of Poles | 1 |
| Boot Sealed Actuator - Limit Switch | No |
| DC Contact Rating | 10 A @ 300 V |
| Actuator Style (Limit Switch) | Plunger |
| Actuator Location (Limit Switch) | Top |
| Mounting Hole - Limit Switch | (2) 0.17 in dia |
| Mounting Hole Spacing - Limit Switch | 0.79 in |
| Width | 1.18 in |
| Body Style (Limit Switch) | Miniature |
| Amps | 10 |
| Depth | 0.63 in |
| Boot Sealed Actuator (Limit Switch) | No |
| IP Rating | 67 |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Limit Switch Style | General Purpose Limit Switch |
| Operating Force | 40 oz |
| Actuator Style | Plunger |
| Actuator Location | Top |
| Movement | Vertical |
| Height | 2.35 in |
| Wiring Entry | Cable |
| Voltage Rating | 300VAC/DC |
| Stem Thread - Limit Switch | No Stem |
| Travel | Maximum Pre-Travel N/A, Minimum Over-Travel N/A |
| Basic Actuator Style (Limit Switch) | Plunger |
| Series | Dayton |
| NEMA Rating | 12, 13, 4, 6, 6P |
| Electrical Connection | 6 ft Cable, 5 Wire, 18 AWG |
| Mounting Hole Horizontal Center to Center Distance | 20 mm |
| Body Depth | 0.63 in |
| Directional Movement | Linear |
| Overtravel | Not Applicable |
| Mounting Style | Surface |
| Body Width | 1.18 in |
| NEMA Enclosure Rating | 4, 13, 6, 6P, 12 |
| Boot Sealed Actuator | No Boot Included |
| Number of Mounting Holes | 2 |
| Pretravel | Not Applicable |
| Body Height | 1.97 in |
| Action | A |
| Operating Force - Maximum | 40 ozf |
| Wireless Network Interface | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Operating Temperature - Minimum | -14 deg F |
| Mounting Hole Diameter | 0.17 in |
| Package Quantity | 1 |
