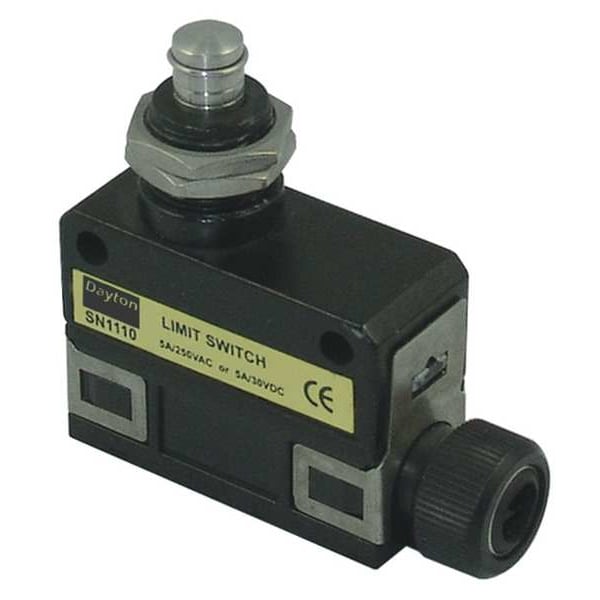

Interruptor de límite, émbolo, SPDT, 5A @ 240V AC. Ubicación del actuador: superior.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Micro |
| Mounting - Limit Switch | Surface, Stem |
| Standards | CE, CSA, UL |
| Operating Temp. Range | -14 to 158 deg F |
| Actuator Location (Limit Switch) | Top |
| AC Contact Rating | 5 A @ 240 V |
| Wiring Entry | Strain Relief |
| Limit Switch Style | General Purpose Limit Switch |
| DC Contact Rating | Not Rated |
| Operating Force | 11.8 N-m |
| Depth | 0.71 in |
| Boot Sealed Actuator - Limit Switch | No |
| Body Width - Limit Switch | 2.29 in |
| NEMA Rating | 13, 3, 4 |
| Height | 2.18 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Contact Form - Limit Switch | SPDT |
| Body Style (Limit Switch) | Micro |
| Mounting Hole - Limit Switch | (2) 0.18 in dia |
| Travel | Maximum Pre-Travel 0.06 in, Over Travel 0.118 in |
| Movement | Vertical |
| Voltage Rating | 240VAC |
| Actuator Style | Plunger |
| Number of Poles | 1 |
| Stem Thread - Limit Switch | M14 x 1.00 in |
| Contact Form | SPDT |
| Actuator Style (Limit Switch) | Plunger |
| Mounting Hole Spacing - Limit Switch | 1.30 in |
| Width | 2.29 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Body Depth - Limit Switch | 0.71 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Electrical Connection | Screw Terminals |
| IP Rating | 67 |
| Body Height - Limit Switch | 1.27 in |
| Actuator Location | Top |
| Amps | 5 |
| Series | Dayton |
| Mounting Style | Surface, Stem |
| Body Height | 1.27 in |
| Number of Mounting Holes | 2 |
| Body Depth | 0.71 in |
| Body Width | 2.29 in |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Diameter | 0.18 in |
| Operating Torque - Maximum | 104.44 in-lb |
| Mounting Hole Horizontal Center to Center Distance | 33 mm |
| Overtravel | 0.12 in |
| Operating Temperature - Minimum | -14 deg F |
| Directional Movement | Linear |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 4, 13, 3 |
| Pretravel | 0.06 in |
| Boot Sealed Actuator | No Boot Included |
| Package Quantity | 1 |
