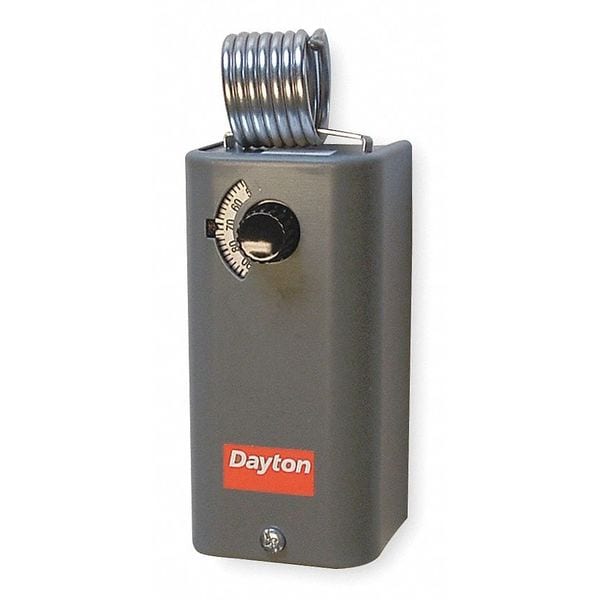

Line Volt Mechanical Tstat, Heat/Cool, 30-110 Degrees F, 60 to 600V AC, Hydraulic Air Coil, Steel
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 600V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 3.5 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 30 to 110 deg F |
| Mounting Location | Box |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2-1/4 in |
| Height | 5-3/4 in |
| Contact Rating Resistive @ 120V | 22 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Number of Switches | 1 |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Temp. Sensitivity | 3 deg F |
| Inductive Amps @ 240V | 8 A |
| Standards | CUL Listed, UL Listed |
| Depth | 2-1/4 in |
| Control Range | 30 to 110 deg F |
| Remote Sensing Capability | No |
| Contact Rating Resistive @ 240V | 22 A |
| Locked Rotor Amps @ 240V | 48 A |
| Thermostat Programmable | No |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Switch Type | SPDT |
| Thermostat Voltage | 24 to 600 V AC |
| Enclosure Type | Standard Enclosure |
| Inductive Amps @ 120V | 16 A |
| Locked Rotor Amps @ 120V | 96 A |
| Item | Line Volt Mechanical Tstat |
| Remote Sensing Bulb Included | No |
| Full Load Amps @ 120VAC | 16 A |
| Full Load Amps @ 240VAC | 8 A |
| Includes | Mounting Plate, Screws |
| Application | Heat or Cool |
| Thermostat Type | Line Voltage |
| Contact Rating Resistive @ 277V | 22 A |
| Inductive Amps @ 208V | 9.2 A |
| Phase | 1 |
| Control Type | Exposed Dial |
| Dehumidification Control | No |
| Temperature Limiting | No |
| Pilot Duty Rating | 125VA @ 24 to 600V AC |
| Sensor Length | 36 in |
| Number of Cooling Stages | 1 |
| For Washdown Environment | No |
| Programming Capability | Not Programmable |
| Temperature Sensitivity | +/-3 deg F |
| Enclosure Material | Steel |
| Maximum Control Temperature | 110 deg F |
| Compatible System Type | Fan Coil Units |
| Overall Depth | 2-1/8 in |
| Enclosure Finish | Polished |
| Minimum Operating Temperature | 30 deg F |
| Contact Type | Snap Action |
| Number of Poles | 1 |
| Sensor Location | Built-In |
| Operating Temperature Range | 30 to 110 deg F |
| Resistive Amps @ 208V AC | 22 A |
| Stages | 1H, 1C |
| Minimum Control Temperature | 30 deg F |
| Shape | Rectangle |
| Temperature Differential | 3.5 Degrees F |
| Enclosure NEMA Rating | 1 |
| Maximum Operating Temperature | 110 deg F |
| Temperature settings per day | Manual Adjust |
| Sensor Diameter | 1/8 in |
| Temperature Control Range | 30 to 110 deg F |
| Differential Type | Fixed |
| Number of Heating Stages | 1 |
| Changeover Type | Automatic |
| Temperature Scale | Fahrenheit |
| Mounting Direction | Vertical |
| Enclosure Color | Gray |
| Frequency | 50 Hz, 60 Hz |
| Overall Height | 5-11/16 in |
| Overall Width | 2-1/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
