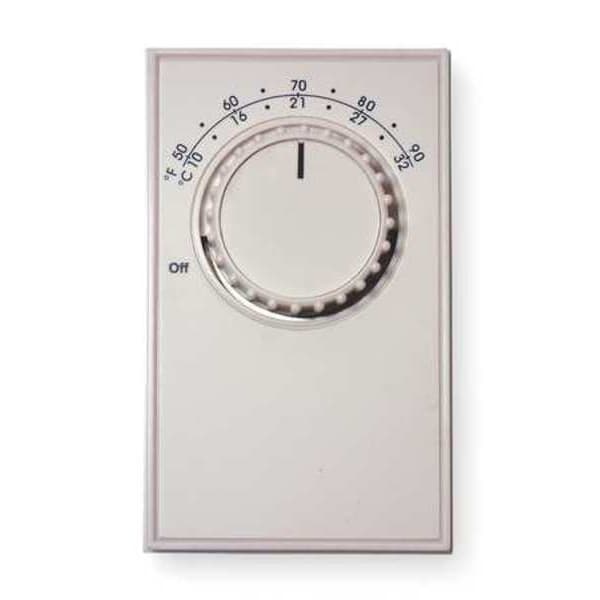

Line Volt Mechanical Tstat, Open on Rise, Vertical, 50 Degrees to 90 Degrees F, DPST
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 2 Degrees to 4 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 50 to 90 deg F |
| Mounting Location | Vertical |
| Switch Type | DPST |
| Color | White/Metallic Plate |
| Width | 2-3/4 in |
| Height | 4-3/4 in |
| Thermostat Voltage | 120 to 277 V AC |
| Remote Sensing Capability | No |
| Item | Line Volt Mechanical Tstat |
| Contact Rating Resistive @ 120V | 22 A |
| Full Load Amps @ 120VAC | 22 A |
| Enclosure Type | ABS |
| Includes | Thermometer |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Number of Switches | 2 |
| Thermostat Programmable | No |
| Mounting Type | Vertical |
| Standards | CSA Certified, UL Listed |
| Remote Sensing Bulb Included | No |
| Thermostat Switch Type | DPST |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Heating/Cooling | Heating |
| Full Load Amps @ 240VAC | 22 A |
| Inductive Amps @ 120V | 13.8 A |
| Locked Rotor Amps @ 120V | 82.8 A |
| Depth | 1-1/2 in |
| Control Range | 50 to 90 deg F |
| Temp. Sensitivity | +/-2 deg F |
| Inductive Amps @ 240V | 10 A |
| Locked Rotor Amps @ 240V | 60 A |
| Application | Heat Only |
| Agency Compliance | UL and CSA |
| Thermostat Type | Line Voltage |
| Control Type | Exposed Dial |
| Voltage Range | 120 to 277 VAC |
| Type | Heating Only |
| Features | Fahrenheit and Celsius Temperature Scale, Mechanical Non Programmable |
| Display | Analog |
| Full Load Amps @ 120V AC | 22 A |
| Overall Height | 4-3/4 in |
| Includes Positive Off | Yes |
| Temperature Readout | Yes |
| Overall Depth | 1-1/2 in |
| Full Load Amps @ 240V AC | 22 A |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Differential | 2 Degrees to 4 Degrees F |
| Amperage | 22 A |
| Mounting Direction | Vertical |
| Number of Heating Stages | 1 |
| Fan Settings | No Fan Setting |
| Differential Type | Fixed |
| Temperature Sensitivity | +/-2 deg F |
| Number of Poles | 2 |
| Housing Color | White |
| Stages | 1H |
| System Settings | On-Off |
| Compatible System Type | Electric Heating |
| Contact Rating | 120 to 277V AC |
| Housing Material | Plastic |
| Minimum Control Temperature | 50 deg F |
| Enclosure Color | White |
| Temperature Control Range | 50 to 90 deg F |
| Maximum Control Temperature | 90 deg F |
| Overall Width | 2-7/8 in |
| Switch Type/Action | Open, DPST on Rise |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
