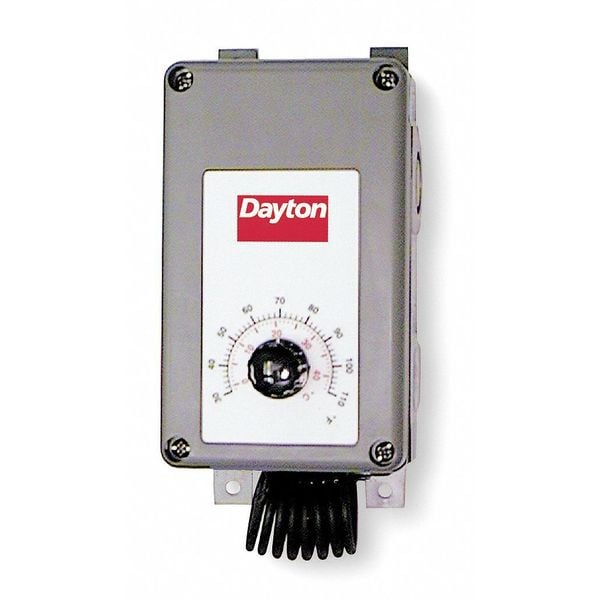

Line Volt Mechanical Tstat, Open/Close on Rise, 30 Degrees to 110 Degrees F, SPDT, 120 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 3 Degrees F |
| Thermostat Control Range | 30 to 110 deg F |
| Switch Type | (2) SPDT |
| Color | Black |
| Width | 3-1/4 in |
| Height | 7 in |
| Inductive Amps @ 240V | 8 A |
| Contact Rating Resistive @ 120V | 16 A |
| Standards | UL/CUL Listed for US and Canada |
| Thermostat Voltage | 120 to 277 V AC |
| Control Range | 30 to 110 deg F |
| Thermostat Heating/Cooling | Heating, Cooling |
| Item | Line Volt Mechanical Tstat |
| Full Load Amps @ 240VAC | 8 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Remote Sensing Bulb Included | No |
| Thermostat Switch Type | SPDT |
| Depth | 3-1/2 in |
| Inductive Amps @ 120V | 16 A |
| Full Load Amps @ 120VAC | 15 A |
| Remote Sensing Capability | No |
| Enclosure Type | NEMA 4X, (2) Piece Molded Plastic |
| Contact Rating Resistive @ 240V | 8 A |
| Number of Switches | 2 |
| Thermostat Programmable | No |
| Locked Rotor Amps @ 120V | 96 A |
| Application | Heat or Cool |
| Thermostat Type | Line Voltage |
| Locked Rotor Amps @ 240V | 48 A |
| Contact Rating Resistive @ 277V | 7.2 A |
| Operating Temperature Range | -26 to 140 deg F |
| Enclosure Material | Plastic |
| Number of Heating Stages | 1 |
| Full Load Amps @ 240V AC | 8 A |
| Enclosure NEMA Rating | 4X |
| Overall Height | 7 in |
| Changeover Type | Automatic |
| Temperature Scale | Fahrenheit, Celsius |
| Enclosure Color | Black |
| Number of Poles | 1 |
| Overall Depth | 3-1/2 in |
| Temperature Differential | 3 Degrees F |
| Minimum Control Temperature | 30 deg F |
| Minimum Operating Temperature | -26 deg F |
| Maximum Operating Temperature | 140 deg F |
| Full Load Amps @ 120V AC | 16 A |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Overall Width | 3-1/4 in |
| Pilot Duty Rating | 125VA @ 24 to 277V AC |
| Temperature Control Range | 30 to 110 deg F |
| Stages | 1H, 1C |
| Maximum Control Temperature | 110 deg F |
| Number of Cooling Stages | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
