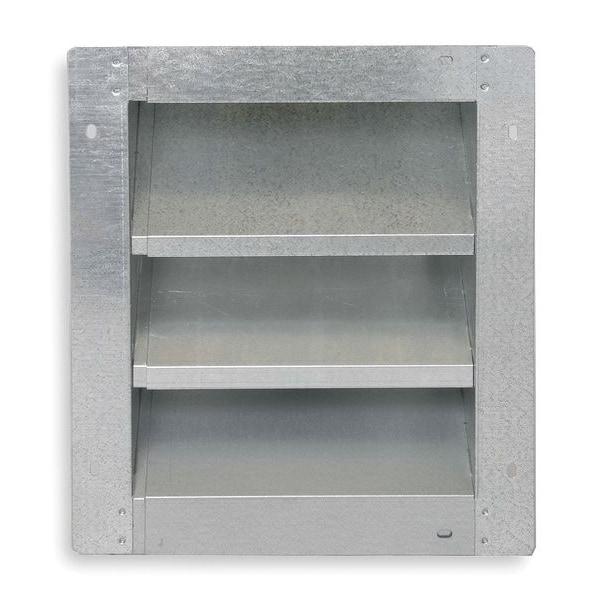

Louver, Adj w/ 40 to 52 In, Galv Steel
| Item | 28"H 40"W Non-Drnbl GSteel Intake Louver |
|---|---|
| Louver Item | Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 2.350 to 3.150 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 24H x 36W |
| Louver Max. Intake | 3,030 cfm |
| Louver Max. Exhaust | 4,330 cfm |
| Louver Material | G90 Galvanized Steel |
| Intake Louver Inside Width | 36 in to 48 in |
| Intake Louver Outside Height | 28 in |
| Number of Blades | 3 |
| Max. Velocity (FPM) | 3,000 fpm |
| Flange Width (In.) | 2 |
| Blade Angle (Deg.) | 45 |
| Outside Width (In.) | 40 to 52 |
| Includes | Bird Screen, Screen Fasteners |
| Inside Height (In.) | 24 |
| Mounting Hole Size (In.) | 9/32 x 1/2 |
| Blade Type | Non-Drainable |
| Minimum Outside Width | 40 in |
| Intake or Exhaust Application | Exhaust, Intake |
| Inside Width | 36 in |
| Maximum Outside Width | 52 in |
| Rough Opening Height | 24 in |
| Frame Depth | 4 in |
| Frame Type | Flanged |
| Rough Opening Width | 36 in |
| Free Area | 3.2 sq ft |
| Finish | Mill |
| Louver Maximum Intake | 3,030 cfm |
| Beginning Point of Water Penetration | 766 fpm |
| Flange Width | 2 in |
| Material Grade | G90 |
| Outside Height | 28 in |
| Maximum Exhaust | 4,330 cfm |
| Inside Height | 24 in |
| Material | Galvanized Steel |
| Blade Angle | 45 deg |
| Maximum Air Velocity | 3,000 fpm |
| Outside Width | 40 in |
| Mounting Style | Surface Mount |
| Fixed or Adjustable Dimensions | Adjustable Width |
| Minimum Inside Diameter | 36 in |
| Maximum Inside Diameter | 48 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
