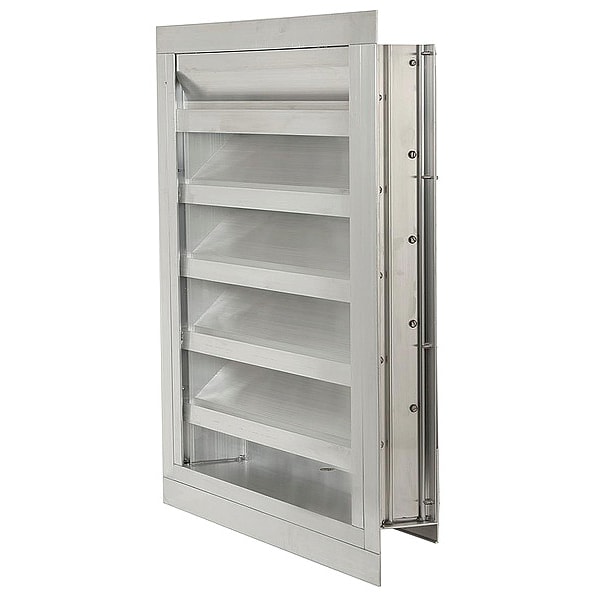

Louver Damper, Adjustable, 12H x 12W
| Item | 15"H 15"W Drnbl Extrd Alu Combo Dmpr |
|---|---|
| Louver Item | Combination Louver Damper |
| Louver Type | Combination |
| Louver Free Area | 0.297 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 12H x 12W |
| Louver Max. Intake | 266 cfm |
| Louver Max. Exhaust | 381 cfm |
| Louver Material | Extruded Aluminum |
| Intake Louver Inside Width | 9 in |
| Intake Louver Outside Height | 14-1/2 in |
| Includes | Bird Screen |
| Inside Height (In.) | 6 |
| Max. Velocity (FPM) | 3,000 fpm |
| Flange Width (In.) | 1-1/2 |
| Number of Blades | 2 |
| Outside Width (In.) | 14-1/2 |
| Blade Angle (Deg.) | 45/90 |
| Maximum Air Velocity | 3,000 fpm |
| Rough Opening Height | 12 in |
| Free Area | 0.2 sq ft |
| Outside Height | 11-1/2 in |
| Frame Type | Flanged |
| Adjustable Blades | Yes |
| Inside Width | 9-3/4 in |
| Rough Opening Width | 12 in |
| Outside Width | 11-1/2 in |
| Beginning Point of Water Penetration | 1,118 fpm |
| Flange Width | 1-1/2 in |
| Louver Maximum Intake | 266 cfm |
| Finish | Mill |
| Blade Angle | 45 deg |
| Inside Height | 10-1/2 in |
| Maximum Exhaust | 381 cfm |
| Material | Aluminum |
| Intake or Exhaust Application | Exhaust, Intake |
| Blade Type | Drainable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
