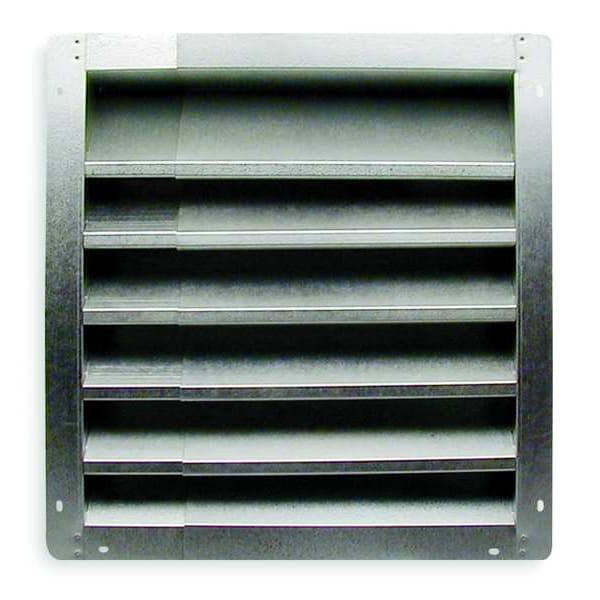

Louver, Intake, 18-30 In, Aluminum
| Louver Item | Intake Louver |
|---|---|
| Item | 28"H 22"W Non-Drnbl Alu Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 1.140 to 1.950 sq ft |
| Min. Wall Opening (In.) | 24H x 18W |
| For Use With | Intake or Exhaust Applications |
| Louver Max. Intake | 1,750 cfm |
| Louver Max. Exhaust | 2,500 cfm |
| Louver Material | 3003 Aluminum |
| Intake Louver Inside Width | 18 in to 30 in |
| Intake Louver Outside Height | 28 in |
| Number of Blades | 3 |
| Inside Height (In.) | 24 |
| Flange Width (In.) | 2 |
| Includes | Bird Screen, Screen Fasteners |
| Outside Width (In.) | 22 to 34 |
| Max. Velocity (FPM) | 3,000 fpm |
| Mounting Hole Size (In.) | 9/32 x 1/2 |
| Blade Angle (Deg.) | 45 |
| Beginning Point of Water Penetration | 766 fpm |
| Louver Maximum Intake | 1,750 cfm |
| Fixed or Adjustable Dimensions | Adjustable Width |
| Maximum Outside Width | 34 in |
| Finish | Mill |
| Frame Depth | 4 in |
| Rough Opening Width | 18 in |
| Outside Height | 28 in |
| Flange Width | 2 in |
| Rough Opening Height | 24 in |
| Mounting Style | Surface Mount |
| Maximum Exhaust | 2,500 cfm |
| Material | Aluminum |
| Inside Width | 18 in |
| Inside Height | 24 in |
| Blade Angle | 45 deg |
| Outside Width | 22 in |
| Material Grade | 3003 |
| Frame Type | Flanged |
| Intake or Exhaust Application | Exhaust, Intake |
| Minimum Outside Width | 22 in |
| Free Area | 2 sq ft |
| Blade Type | Non-Drainable |
| Maximum Air Velocity | 3,000 fpm |
| Minimum Inside Diameter | 18 in |
| Maximum Inside Diameter | 30 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
