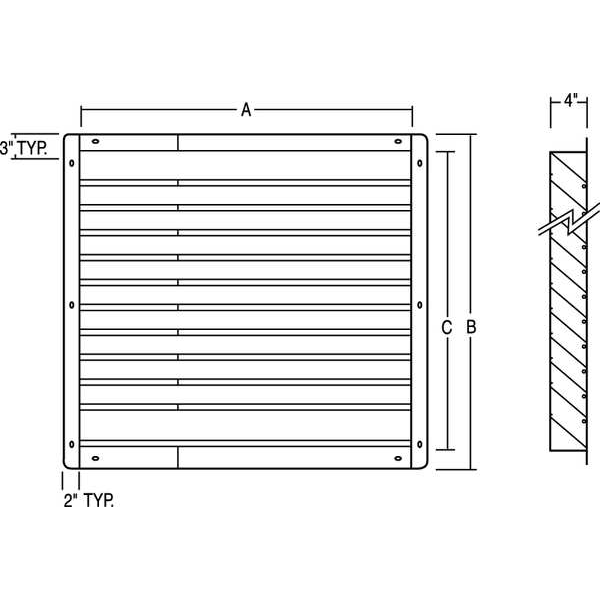

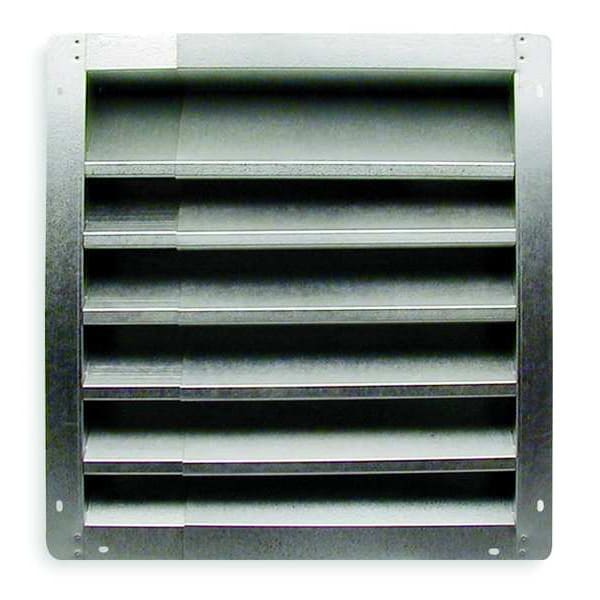

Louver, Intake, 24-42 In, Galvanized Steel
| Item | 46"H 28"W Non-Drnbl GSteel Intake Louver |
|---|---|
| Louver Item | Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 3.160 to 5.610 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 42H x 24W |
| Louver Max. Intake | 4,290 cfm |
| Louver Max. Exhaust | 6,125 cfm |
| Louver Material | G90 Galvanized Steel |
| Intake Louver Inside Width | 24 in to 42 in |
| Intake Louver Outside Height | 46 in |
| Blade Angle (Deg.) | 45 |
| Inside Height (In.) | 42 |
| Includes | Bird Screen, Screen Fasteners |
| Outside Width (In.) | 28 to 46 |
| Number of Blades | 7 |
| Mounting Hole Size (In.) | 9/32 x 1/2 |
| Max. Velocity (FPM) | 3,000 fpm |
| Flange Width (In.) | 2 |
| Maximum Exhaust | 6,125 cfm |
| Blade Angle | 45 deg |
| Fixed or Adjustable Dimensions | Adjustable Width |
| Blade Type | Non-Drainable |
| Material Grade | G90 |
| Inside Width | 24 in |
| Intake or Exhaust Application | Exhaust, Intake |
| Inside Height | 42 in |
| Rough Opening Height | 42 in |
| Louver Maximum Intake | 4,290 cfm |
| Rough Opening Width | 24 in |
| Beginning Point of Water Penetration | 766 fpm |
| Flange Width | 2 in |
| Outside Height | 46 in |
| Maximum Outside Width | 46 in |
| Outside Width | 28 in |
| Mounting Style | Surface Mount |
| Material | Galvanized Steel |
| Frame Type | Flanged |
| Finish | Mill |
| Frame Depth | 4 in |
| Free Area | 5.6 sq ft |
| Maximum Air Velocity | 3,000 fpm |
| Minimum Outside Width | 28 in |
| Maximum Inside Diameter | 42 in |
| Minimum Inside Diameter | 24 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
