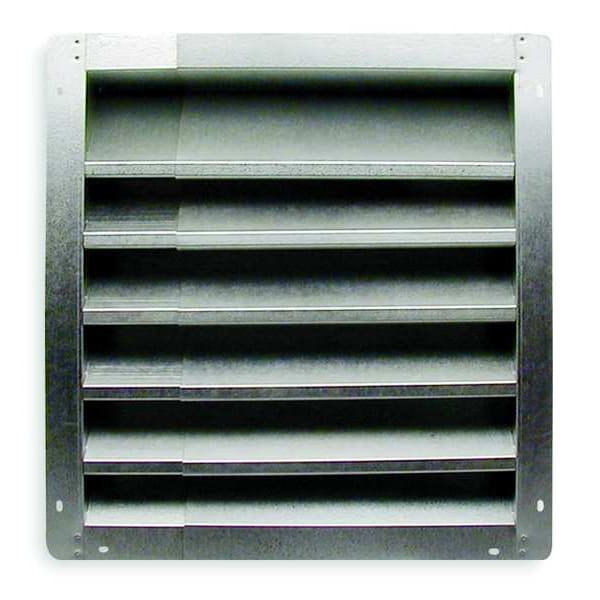

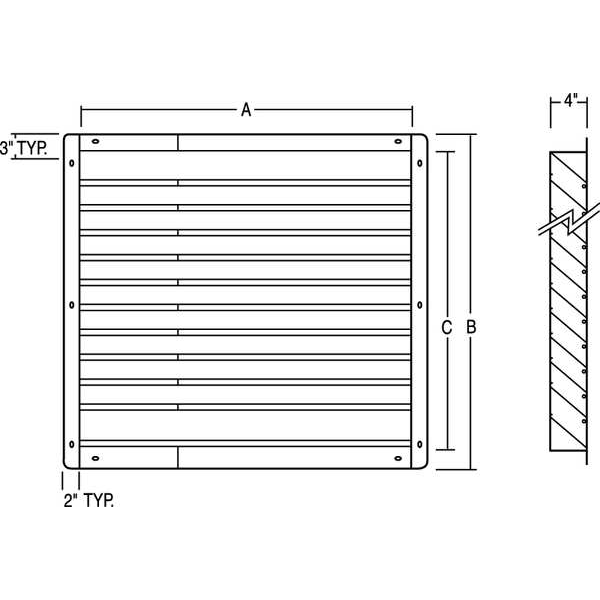

Louver, Intake, 36-48 In, Aluminum
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Louver Item | Intake Louver |
| Item | 52"H 40"W Non-Drnbl Alu Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 4.900 to 6.570 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 48H x 36W |
| Louver Max. Intake | 5,600 cfm |
| Louver Max. Exhaust | 8,000 cfm |
| Louver Material | 3003 Aluminum |
| Intake Louver Inside Width | 36 in to 48 in |
| Intake Louver Outside Height | 52 in |
| Blade Angle (Deg.) | 45 |
| Max. Velocity (FPM) | 3,000 fpm |
| Outside Width (In.) | 40 to 52 |
| Number of Blades | 9 |
| Flange Width (In.) | 2 |
| Mounting Hole Size (In.) | 9/32 x 1/2 |
| Inside Height (In.) | 48 |
| Includes | Bird Screen, Screen Fasteners |
| Finish | Mill |
| Free Area | 6.6 sq ft |
| Louver Maximum Intake | 5,600 cfm |
| Material | Aluminum |
| Rough Opening Height | 48 in |
| Minimum Outside Width | 40 in |
| Rough Opening Width | 36 in |
| Maximum Exhaust | 8,000 cfm |
| Frame Type | Flanged |
| Blade Angle | 45 deg |
| Maximum Air Velocity | 3,000 fpm |
| Flange Width | 2 in |
| Outside Width | 40 in |
| Fixed or Adjustable Dimensions | Adjustable Width |
| Maximum Outside Width | 52 in |
| Blade Type | Non-Drainable |
| Inside Height | 48 in |
| Frame Depth | 4 in |
| Material Grade | 3003 |
| Outside Height | 52 in |
| Beginning Point of Water Penetration | 766 fpm |
| Mounting Style | Surface Mount |
| Intake or Exhaust Application | Exhaust, Intake |
| Inside Width | 36 in |
| Minimum Inside Diameter | 36 in |
| Maximum Inside Diameter | 48 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
