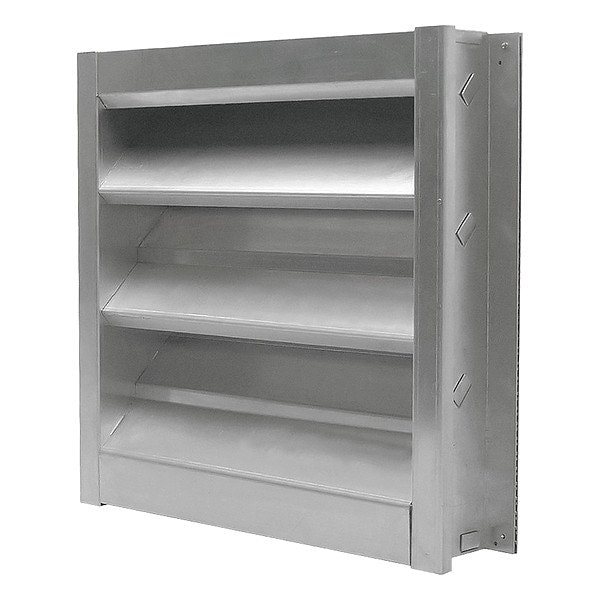

Louver, Wall Opening 36 x 24 In, Aluminum
| Louver Item | Intake Louver |
|---|---|
| Item | 24"H 36"W Non-Drnbl Alu Modular Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 2.175 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 24H x 36W |
| Louver Max. Intake | 2,028 cfm |
| Louver Max. Exhaust | 2,897 cfm |
| Louver Material | Aluminum |
| Intake Louver Inside Width | 33 in |
| Intake Louver Outside Height | 23-1/2 in |
| Includes | Bird Screen, Screen Fasteners |
| Number of Blades | 6 |
| Blade Angle (Deg.) | 45 |
| Inside Height (In.) | 23 |
| Flange Width (In.) | 1-1/4 |
| Outside Width (In.) | 35-1/2 |
| Max. Velocity (FPM) | 3,000 fpm |
| Outside Height | 23-1/2 in |
| Intake or Exhaust Application | Exhaust, Intake |
| Minimum Outside Width | 35-1/2 in |
| Blade Type | Non-Drainable |
| Rough Opening Height | 24 in |
| Outside Width | 35-1/2 in |
| Maximum Outside Width | 35-1/2 in |
| Frame Type | Hat Channel |
| Material | Aluminum |
| Maximum Air Velocity | 3,000 fpm |
| Inside Height | 23 in |
| Finish | Mill |
| Rough Opening Width | 36 in |
| Flange Width | Not Applicable |
| Maximum Exhaust | 2,897 cfm |
| Blade Angle | 45 deg |
| Inside Width | 33 in |
| Frame Depth | 4 in |
| Louver Maximum Intake | 2,028 cfm |
| Free Area | 2.8 sq ft |
| Beginning Point of Water Penetration | 709 fpm |
| Mounting Style | Flush Mount |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
