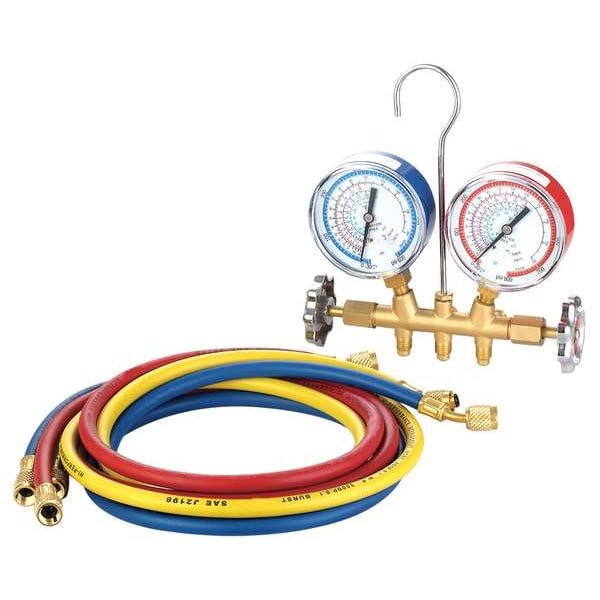

Manifold Gauge Set, 2 Valve, 3 Hoses
| Item | Manifold Gauge Set |
|---|---|
| Number of Valves | 2 |
| Refrigerant Compatibility | R-22, R-404A, R-407C, R-410A |
| Number of Hoses | 3 |
| Gauges Low Side Blue | 30 inHg to 600 psi |
| Features | With 3 1/8 in Diameter High and Low Side Dry Gauges, Piston Style Valves |
| Hose Length | 6 ft |
| Material | Brass |
| Includes | Blind Ports on Manifold, Hanging Hook |
| Gauges High Side Red | 30 in Hg to 800 psi |
| Standards | Not Applicable |
| Overall Width | Not Applicable |
| For Use With | R-22, R-404A, R-407C, R-410A |
| Overall Height | Not Applicable |
| Product Type | Manifold Gauge Set |
| Type | Refrigeration, Air Conditioning Testing and Charging |
| Warranty | 1 yr |
| Vacuum Port Connection Size | Not Applicable |
| Automatic Shut-Off Time | Not Applicable |
| App Compatibility | Not Applicable |
| Number of Batteries | Not Applicable |
| Vacuum Port Connection Type | Not Applicable |
| Overall Depth | Not Applicable |
| A2L Compatibility | Not A2L Compatible |
| Gauge Fill | Dry |
| Pressure Resolution | 0.1 psi |
| Adjustment Method | Knob |
| Includes Gauge Boots | Boots Included |
| Display Size | Not Applicable |
| Includes Sightglass | Sightglass Included |
| Manifold Port Connection Type | SAE |
| High Side Display Pressure - Maximum | 800 psi |
| Gauge Diameter | 3-1/8 in |
| Hose Connection Thread Direction | Right-Hand |
| Manifold Port Connection Gender | Female |
| Seal Material | Nitrile |
| Low Side Display Pressure - Minimum | 30 inHg |
| High Side Display Pressure - Minimum | 0 psi |
| For Operating System | Not Applicable |
| Power Source | Not Powered |
| Valve Bore | Not Applicable |
| Display Location | Built-In |
| Manifold Port Connection Size | 1/4 in |
| IP Rating | IP4X |
| Battery Type | Not Applicable |
| For Refrigerant Group | HFC |
| Series | Not Applicable |
| Includes Vacuum Port | Vacuum Port Not Included |
| Temperature Units Measured | Degrees F |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Includes Batteries | Batteries Not Included |
| Display Type | Analog |
| Gauge Type | High Side, Low Side |
| Temperature Resolution | 0.1 deg F |
| Body Material | Brass |
| Display Illumination | Non-Illuminated |
| Hose Color | Yellow, Blue, Red |
| Operating Temperature - Minimum | -70 deg F |
| Low Side Display Pressure - Maximum | 600 psi |
| Adjustment Material | Not Applicable |
| Calibration Certificate Type | Not Certified |
| Manifold Port Connection Thread Direction | Right-Hand |
| Hose Material | Rubber |
| Operating Temperature - Maximum | 200 deg F |
| Accuracy | +/- 2.5% |
| For Refrigerant Type | R-22, R-404A, R-407C, R-410A |
| Hose Connection Type | SAE |
| Response Time | Not Applicable |
| Pressure Units Measured | in Hg, psi |
| Vacuum Port Connection Gender | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
