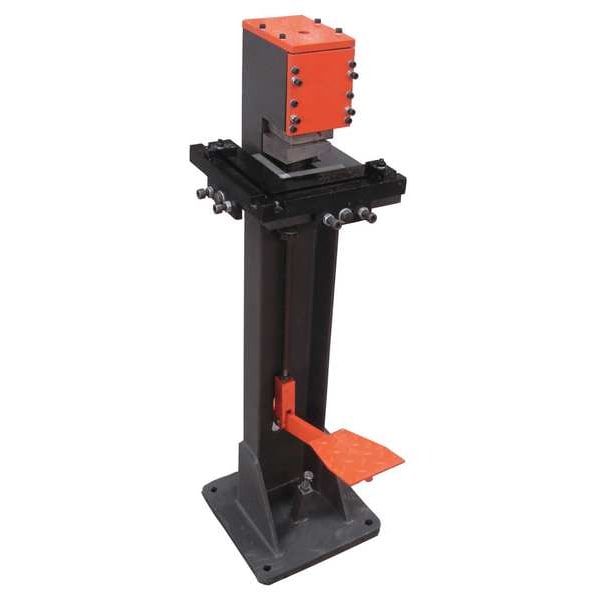

Metal Notcher, Foot Controled, 16 Ga.
| Item | Manual Metal Stock Notcher |
|---|---|
| Blade | Lower, Can be Reversed and Sharpened for Extended Use, Shearing, Precision Ground, Heat-treated Tool Steel |
| Gauge | 16 |
| Max. Notch | 3-1/8 x 3-1/8 x 90 Degrees |
| Stroke (In.) | 1-1/8 |
| Way | Welded Steel Plates |
| Application | Box, Chassis, and Panel Blanks with Foot Pedal, Triangular, Accurately Controls the Alignment of the Cutting Head at All Times |
| Worktable Dimension (In.) | 10-1/4 x 10-1/4 |
| Features | Control Cutting Head Alignment, Foot Control Pedal |
| Notch Angle | 90 Degrees |
| Sheet Metal Capacity Mild Steel | 1.5 mm |
| Sheet Capacity Aluminum | 2 mm |
| Ram Type | Manual |
| Blade Length | 3-1/8 in |
| Stroke Length | 1-1/8 in |
| Body Color | Black |
| Sheet Metal Capacity Stainless Steel | 0.8 mm |
| Notch Length | 3-1/8 in |
| Power Source | Manual |
| Notch Depth | 3-1/8 in |
| Blade Material | Steel |
| Package Quantity | 1 |
