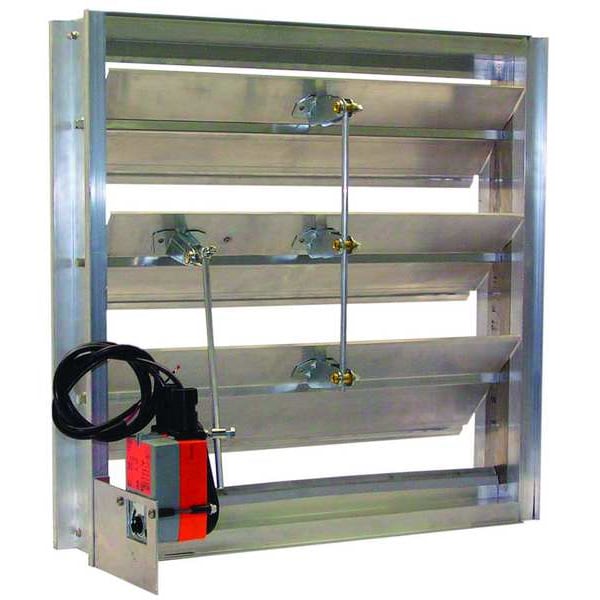

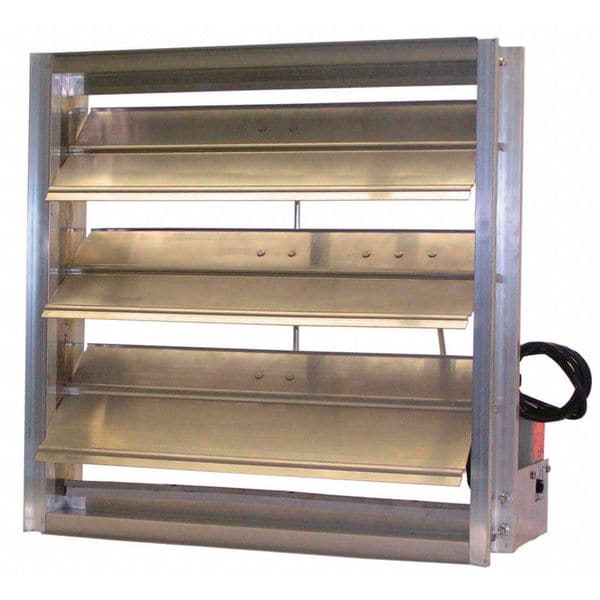

Motorized Hat Channel Damper, 100-240V
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | 41.8"H-W 14.5"L Squ Mtrzd Contrl Dampr |
| Voltage | 100 to 240 V |
| Overall Square | 41-3/4 in |
| Sq. Opening Required | 42 in |
| Free Area | 10.5 sq ft |
| Frame Less Flange | 39.75 sq in |
| Motor Bracket Extension | 11 1/2 in |
| Hz | 50/60 |
| For Use With | Duct Work In Volume Control Intake or Exhaust Applications |
| Mounting Position | Horizontal, Vertical |
| Material | Extruded Aluminum |
| Operation | Power Open, Spring Return |
| Number of Panels | 1 |
| Flange Width | Not Applicable |
| Overall Height | 41-3/4 in |
| Overall Length | 14-1/2 in |
| Overall Width | 41-3/4 in |
| Standards | NEC; OSHA |
| Phase | 1 |
| Jamb Seal Material | Stainless Steel |
| Switch Action | Normally Open |
| Blade Material Thickness | 16 ga |
| Includes Motor | Yes |
| Nameplate Voltage | 100/240V AC |
| Frame Material | Aluminum |
| Airflow Direction | Horizontal, Vertical |
| Flange Type | Hat Channel |
| Electrical Connection | Hardwired |
| Maximum Air Velocity | 3500 fpm |
| Rough Opening Width | 42 in |
| For Nominal Duct Diameter | 42 in |
| Damper Finish | Mill Finish |
| Axle Material | Plated Steel |
| Frame Material Thickness | 14 ga |
| Series | GMD-SP |
| Maximum Temperature Rating | 122 Degrees F |
| Fusible Link Temperature | 122 Degrees F |
| Blade Type | Flat Blade |
| Maximum Air Pressure | 4 in wg |
| Blade Seal Material | TPV |
| For Duct Shape | Square |
| Rough Opening Length | 42 in |
| Frequency | 50/60 Hz |
| Blade Material | Galvanized Steel |
| Bushing Material | Brass |
| Damper Application | Motorized |
| Blade Orientation | Parallel Blades |
| Rough Opening Shape | Square |
| Closure Velocity Rating | 3,500 fpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
