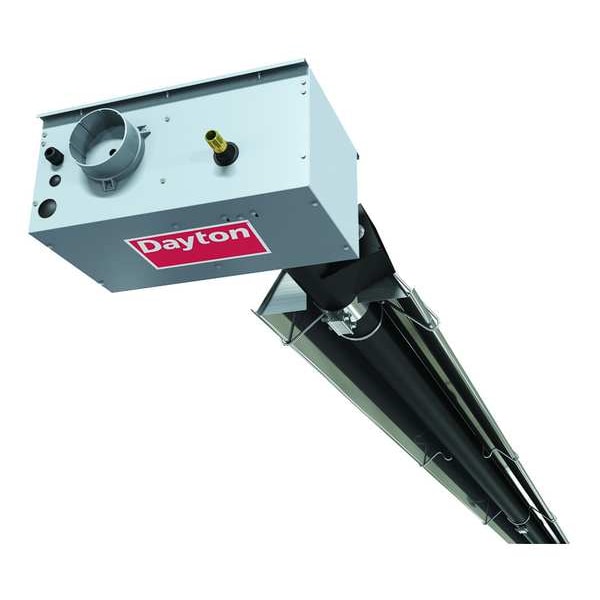

NG Infrared Tube Heater, 100000 BtuH
| Item | Gas Infrared Tube Heater |
|---|---|
| Indoor/Outdoor | Indoor, Outdoor |
| Gas Type | NG |
| BtuH | 100,000 |
| Height | 8-1/2 in |
| Width | 18-1/8 in |
| Length | 492 in |
| Radiant Pipe | 40 ft |
| Min. Mounting Height | 15 ft |
| Heater Voltage | 120 V AC |
| Clearance to Combustibles (In.) Top 0 Deg. | 6 |
| Includes | Mounting Chains, Stainless Steel Flexible Gas Connector, Gas Shut Off |
| Hz | 60 |
| Clearance to Combustibles (In.) Front 1-45 Deg. | 39 |
| Clearance to Combustibles (In.) Behind 45 Deg. | 8 |
| Vent Dia. | 4 in |
| Amps AC | 4.8 |
| Clearance to Combustibles (In.) Behind 1-45 Deg. | 8 |
| Clearance to Combustibles (In.) Sides 0 Deg. | 14 |
| Clearance to Combustibles (In.) Below 0 Deg. | 66 |
| Clearance to Combustibles (In.) Front 45 Deg. | 39 |
| Standards | CSA Blue Star Certified |
| Clearance to Combustibles (In.) Top 45 Deg. | 10 |
| Clearance to Combustibles (In.) Top 1-45 Deg. | 10 |
| Manufacturers Warranty Length | 1 yr |
| Overall Height | 8 1/2 in |
| Overall Width | 18 1/8 in |
| Radiant Tube Material | Aluminum |
| Frequency | 60 Hz |
| Heating Capacity Input | 100,000 BtuH |
| Floor Coverage @ Minimum Mounting Height | 30 ft x 40 ft |
| Heating Method | Radiant |
| Clearance to Combustibles 45 Deg. - Top x Below x Sides | 10 in x 66 in x 39 in x 8 in |
| Product Type | Suspended Infrared Tube Heater |
| Gas Connection Type | NPT |
| Vent Diameter | 4 in |
| Gas Connection Size | 1/2 in |
| Overall Depth | 41 ft |
| Heat Output | 100,000 BtuH |
| Amperage | 4.8 A |
| For Use Outdoors | Indoor Only |
| Thermostat Included | No |
| Reflector Material | Aluminum |
| Ignition Type | Hot-Surface |
| Clearance to Combustibles 0 Deg. - Top x Below x Sides | 6 in x 66 in x 14 in x 14 in |
| Radiant Tube Length | 40 ft |
| Element Type | Radiant Pipe |
| Fuel Type | Natural Gas |
| Fuel Consumption | 0.96 thm/hr |
| Operating Temperature | 480 Degrees F |
| For Use Indoors/Outdoors | Indoor Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
