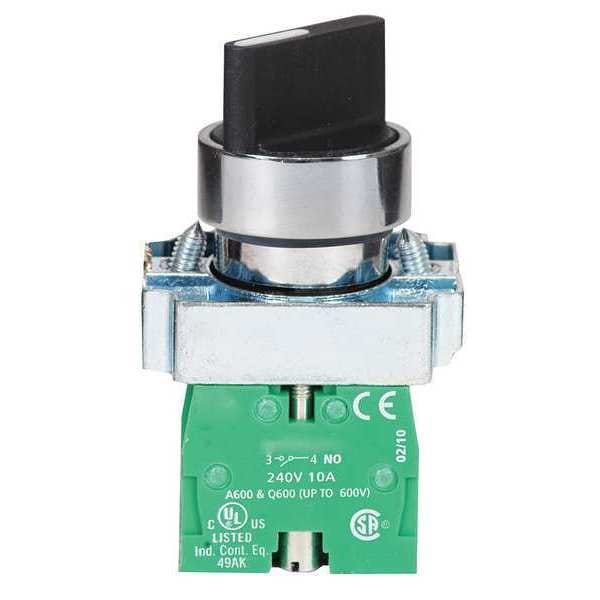

Interruptor selector no iluminado, 22mm, 3 posiciones, perilla
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained, Momentary |
| Contact Form | 2 NO |
| Cam | No Cam Included |
| Operator Head Material | Plastic |
| Color | Black |
| NEMA Rating | 1, 2, 3, 4, 4X |
| Bezel Material | Aluminum |
| Position | 3 |
| Key Removal | No Key |
| Bezel Color | Silver |
| Switch Operation @ Position C | X |
| Switch Operation @ Position D | No Fourth Position |
| NEMA Contact Rating Designation | A600, Q600 |
| Contact Rating | 10A @ 600V AC, 2.5A @ 600DC |
| IP Rating | IP65 |
| Switch Operation @ Position B | O |
| Switch Operation @ Position A | X |
| Standards | CE, CSA, IEC, UL Listed |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 2.5 A @ 600 V |
| Includes Operator Key | Not Applicable |
| Switch Function @ 1st Position | On |
| Operator Illumination | Non-Illuminated |
| Operator Head Type | Short-Handled Knob |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 4th Position | No Fourth Position |
| NEMA Enclosure Rating | 3, 4, 1, 4X, 2 |
| Number of Positions | 3 |
| Metal Operator Head Finish | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Switch Function @ 3rd Position | On |
| Contact Block Material | Metal |
| Key Removal Position | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Package Quantity | 1 |
