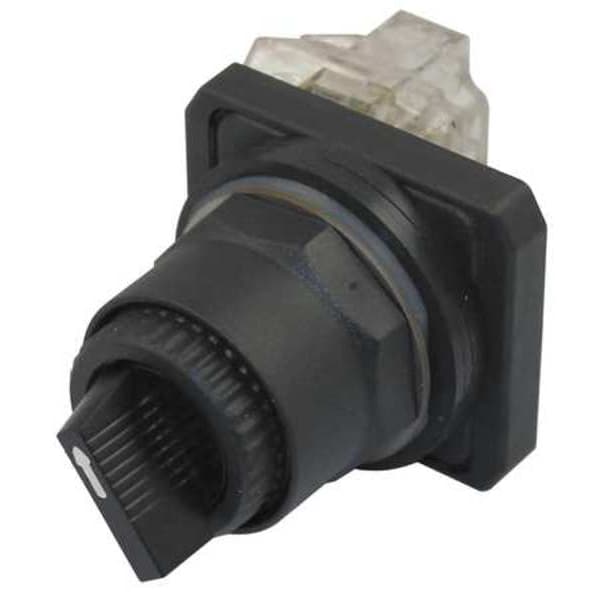

Interruptor selecto no iluminado, 30 mm, 2 posiciones, palanca
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Plastic |
| Type of Operator | Lever |
| Action | Maintained |
| Contact Form | 1NO/1NC |
| Operator Head Material | Plastic |
| Cam | E |
| Color | Black |
| NEMA Rating | 13, 4, 4X |
| Position | 2 |
| Bezel Material | Plastic |
| Bezel Color | Silver |
| Key Removal | No Key |
| Switch Operation @ Position B | OX |
| NEMA Contact Rating Designation | A600, Q600 |
| Contact Rating | 10A @ 600V AC, 2.5A @ 600DC |
| Standards | CE, cULus |
| IP Rating | IP65 |
| Switch Operation @ Position C | No Third Position |
| Switch Operation @ Position A | XO |
| Switch Operation @ Position D | No Fourth Position |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 10 A @ 600 V |
| Operator Illumination | Non-Illuminated |
| Lamp Voltage - Maximum | Not Applicable |
| Metal Operator Head Finish | Not Applicable |
| Number of Positions | 2 |
| Switch Function @ 2nd Position | On |
| Key Removal Position | Not Applicable |
| Overall Height | 3.19 in |
| Includes Operator Key | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Overall Width | 1.73 in |
| Operator Head Type | Long-Handled Knob |
| NEMA Enclosure Rating | 4, 13, 4X |
| Switch Function @ 1st Position | On |
| Manufacturer Warranty Length | 1 yr |
| Operator Head Color | Black |
| Switch Function @ 4th Position | No Fourth Position |
| Contact Block Material | Plastic |
| Overall Depth | 1.97 in |
| Switch Function @ 3rd Position | No Third Position |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
