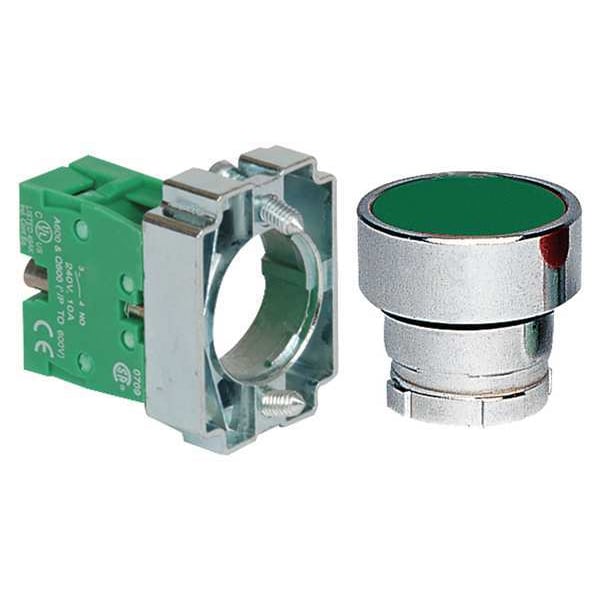

Botón pulsador no iluminado, 22 mm, 1NO, verde
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Type of Operator | Flush Button |
| Lamp Type | Not Applicable |
| Contact Form | 1NO |
| Color | Green |
| Legend | No Legend |
| Bezel | Die Cast Aluminum |
| Number of Operators | 1 |
| Item | Flush Push Button Operator |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Chrome Die Cast Aluminum |
| Terminal Connection | Pressure Plate |
| Basic Material | Metal |
| NEMA Contact Rating Designation | A600, Q600 |
| Material | metal |
| Standards | CE, CSA, IEC, UL Listed |
| Lamp Module Type | Not Applicable |
| AC Contact Rating | 10 A @ 600 V |
| Series | Dayton |
| Product Type | Push Button Operators |
| Mushroom Head Diameter | Not Applicable |
| Operator Material | Metal |
| Push Button Style | Flush |
| Lamp Voltage - Maximum | Not Applicable |
| Head Color | Green |
| Operator Illumination | Non-Illuminated |
| Panel Cutout Diameter | 22 mm |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Package Quantity | 1 |
