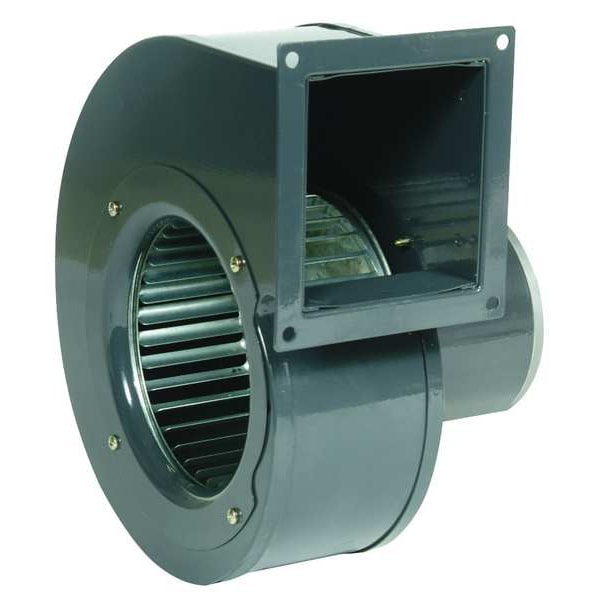

OEM Blower, Direct Drive, 6-1/4 in Wheel Dia, 542 cfm, 115V AC, 1 Phase, 1/10 hp, Open Motor
| CFM @ 0.100-In. SP | 520/398 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 2.00/1.54 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 5-5/16 in |
| Number of Speeds | 2 |
| Overall Height | 11-1/8 in |
| Overall Width | 8-15/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 6-1/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Motor Insulation | Class B |
| Blower Wheel Width | 3-3/16 in |
| CFM @ 0.700-In. SP | 390/300 |
| Dimension B | 11-13/16 in |
| Overall Depth | 10-7/16 in |
| Dimension M | 5 in |
| Dimension E | 11-1/8 in |
| CFM @ 0.400-In. SP | 465/362 |
| Dimension F | 4-7/16 in |
| Lead Length | 13 in |
| CFM @ 0.300-In. SP | 480/375 |
| Wheel Type | Forward-Curved |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Outlet Width | 5-1/4 in |
| Dimension D | 5-5/16 in |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.800-In. SP | 358/270 |
| Outlet Height | 4-1/4 in |
| Dimension K | 5-5/8 in |
| CFM @ 0.200-In. SP | 510/387 |
| Housing Color | Gray |
| RPM | 1430/1060 |
| Dimension A | 10-7/16 in |
| Dimension J | 6-5/8 in |
| CFM @ 0.600-In. SP | 420/337 |
| CFM @ 0.000-In. SP | 542/409 |
| CFM @ 0.500-In. SP | 450/348 |
| Replaces | 4C566 |
| Housing Finish | Enamel |
| Mounting Position | All Position |
| Hz | 50/60 |
| Item | OEM Blower |
| Max. Inlet Temp. | 104 deg F |
| Dimension C | 8-15/16 in |
| Dimension L | 6 in |
| Motor Enclosure | Open |
| Bearing Type | Ball |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Electrical Connection | Wire Leads |
| Includes Drive Package | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 12.00 in SP | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 8.000 in SP | Not Applicable |
| Housing Material Gauge | 1.2 mm |
| Airflow @ 3.500 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 5.000 in SP | Not Applicable |
| Housing Height | 11-1/8 in |
| OEM Replacement | Yes |
| Rotation | CW |
| Hazardous Location Application | No |
| Mounting Orientation | Multiposition |
| For Location | Indoor |
| Airflow @ 0.000 in SP | 542 cfm |
| Inlet Diameter | 5-1/4 in |
| Airflow @ 7.000 in SP | Not Applicable |
| Number of Inlets | 1 |
| Flange Type | Flanged |
| Airflow @ 1.500 in SP | Not Applicable |
| Housing Width | 8-15/16 in |
| Shaft Diameter | 12 mm |
| Corrosion Resistant | No |
| Maximum Fan Speed | 1,430 rpm |
| Sound Level | Not Rated |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Replacement For | 4C566 |
| Minimum Fan Speed | 0 RPM |
| High-Efficiency Motor | No |
| For Air Type | Clean Air |
| Motor Insulation Class | B |
| Housing Material Grade | SPCC |
| Airflow @ 2.000 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Wheel Diameter | 6-1/4 in |
| Airflow @ 10.00 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Frequency | 50/60 Hz |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 465 cfm |
| Motor Location | Out of Airstream |
| Includes Mounting Hardware | No |
| Motor Duty Class | Continuous |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Brake Horsepower | 0.1 HP |
| Flange Size | 6-5/8 in W x 5-5/8 in H |
| Motor Speed | 1,430 rpm |
| Outlet Diameter | Not Applicable |
| Compatible Speed Control | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Motor Frame Designation | 4.4" PSC motor |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Thermal Overload Protection | Yes |
| Motor Horsepower | 0.1 HP |
| Airflow @ 0.125 in SP | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| For High-Static Pressure Applications | No |
| Motor IP Rating | IP20 |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Features | The Dynamically Balanced Blower Provides Smooth and Quiet Operation, The Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain Cfm at Higher Static Pressures |
| Maximum Static Pressure | 1.25 in wc |
| Airflow @ 0.100 in SP | 398 cfm |
| Manufacturer Warranty Length | 1 yr Limited |
| Resistance Properties | Corrosion Resistant |
| Housing Depth | 10-7/16 in |
| Outlet Shape | Rectangular |
| Hazardous Location Specification | Not Applicable |
| Assembly | Assembled |
| Airflow @ 0.250 in SP | 385 cfm |
| Includes Motor | Yes |
| AMCA Fan Class | Not Rated |
| Wheel Width | 3-3/16 in |
| Wheel Material Finish | Galvanized |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Wheel Bore Diameter | 12 mm |
| Airflow @ 0.500 in SP | 450 cfm |
| Current | 2/1.54 A |
| Nameplate Voltage | 115V AC |
| Maximum Inlet Air Temperature | 104 deg F |
| Mount Type | All Position |
| Speed Controllable | No |
| Chemical Resistant | No |
| Airflow @ 4.500 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| Wheel Material | Steel |
| Voltage | 115 |
| Mounting | All Position |
| Type | 2 Speed |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
