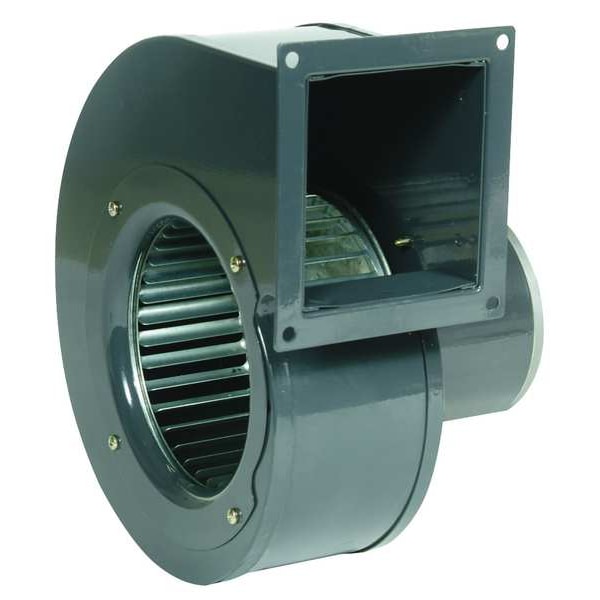

OEM Blower, Direct Drive, 6-1/8 in Wheel Dia, 485 cfm, 115V AC, 1 Phase, 1/12 hp, Open Motor
| CFM @ 0.100-In. SP | 475 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 1.35 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 5-5/16 in |
| Number of Speeds | 1 |
| Overall Height | 11-1/8 in |
| Overall Width | 7-5/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 6-3/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Housing Finish | Enamel |
| Blower Wheel Width | 1-7/8 in |
| Dimension K | 5-5/8 in |
| Dimension C | 7-5/8 in |
| CFM @ 0.700-In. SP | 275 |
| Outlet Width | 3-3/4 in |
| Dimension B | 11-3/4 in |
| CFM @ 0.600-In. SP | 325 |
| Dimension F | 4-7/16 in |
| Overall Depth | 10-7/16 in |
| RPM | 1,650 |
| Mounting Position | All Position |
| Wheel Type | Forward-Curved |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Bearing Type | Ball |
| CFM @ 0.800-In. SP | 215 |
| CFM @ 0.200-In. SP | 448 |
| Dimension M | 5 in |
| Dimension D | 4-1/16 in |
| CFM @ 0.500-In. SP | 375 |
| CFM @ 0.400-In. SP | 398 |
| Max. Ambient Temp. | 104 deg F |
| Dimension L | 4-1/2 in |
| Dimension J | 5-1/16 in |
| Motor Enclosure | Open |
| Outlet Height | 4-1/4 in |
| Max. Inlet Temp. | 104 deg F |
| Motor Insulation | Class B |
| Item | OEM Blower |
| CFM @ 0.300-In. SP | 425 |
| Dimension E | 11-1/8 in |
| Housing Color | Gray |
| Hz | 50/60 |
| Dimension A | 10-7/16 in |
| Replaces | 4C444 and 4YJ31 |
| CFM @ 0.000-In. SP | 485 |
| Lead Length | 13 in |
| Hazardous Location Specification | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Thermal Overload Protection | Yes |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 0.000 in SP | 485 cfm |
| Includes Drive Package | Not Applicable |
| Motor Duty Class | Continuous |
| Outlet Shape | Rectangular |
| Airflow @ 0.100 in SP | 475 cfm |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 4.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 10.00 in SP | Not Applicable |
| Wheel Diameter | 6-1/8 in |
| Corrosion Resistant | No |
| Housing Depth | 10-7/16 in |
| Airflow @ 0.500 in SP | 375 cfm |
| Shaft Diameter | 12 mm |
| Airflow @ 2.500 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| OEM Replacement | Yes |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 1.250 in SP | Not Applicable |
| Current | 1.35 A |
| Compatible Speed Control | No |
| Airflow @ 0.400 in SP | 398 cfm |
| Airflow @ 1.000 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Airflow @ 2.000 in SP | Not Applicable |
| Motor Frame Designation | 4.4" PSC motor |
| Speed Controllable | No |
| Housing Material Grade | SPCC |
| Motor Horsepower | 1/12 hp |
| Resistance Properties | Corrosion Resistant |
| Housing Material Finish | Enamel |
| Hazardous Location Application | No |
| Electrical Connection | Wire Leads |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Motor Location | Out of Airstream |
| Airflow @ 5.000 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Airflow @ 0.250 in SP | 425 cfm |
| Manufacturer Warranty Length | 1 yr Limited |
| Housing Material Gauge | 1.2 mm |
| Frequency | 50/60 Hz |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Flange Size | 5-1/16 in W x 5-5/8 in H |
| Airflow @ 12.00 in SP | Not Applicable |
| Minimum Fan Speed | 0 RPM |
| Flange Type | Flanged |
| Airflow @ 0.125 in SP | Not Applicable |
| For High-Static Pressure Applications | No |
| Wheel Material Finish | Galvanized |
| Motor Insulation Class | B |
| Airflow @ 0.750 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Motor Speed | 1,640 rpm |
| Airflow @ 8.000 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Number of Inlets | 1 |
| Maximum Static Pressure | 1.125 in wc |
| Rotation | CW |
| Wheel Width | 1-7/8 in |
| Airflow @ 11.00 in SP | Not Applicable |
| Brake Horsepower | 1/12 hp |
| Motor IP Rating | IP20 |
| For Location | Indoor |
| Replacement For | 4C444, 4YJ31 |
| Housing Height | 11-1/8 in |
| Sound Level | Not Rated |
| Maximum Inlet Air Temperature | 104 deg F |
| Inlet Diameter | 5-1/4 in |
| Mount Type | All Position |
| Spark Resistant Construction Type | Not Rated |
| Wheel Bore Diameter | 12 mm |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Maximum Fan Speed | 1,650 rpm |
| Housing Width | 7-5/8 in |
| Assembly | Assembled |
| High-Efficiency Motor | No |
| Includes Mounting Hardware | No |
| Chemical Resistant | No |
| Airflow @ 1.500 in SP | Not Applicable |
| For Air Type | Clean Air |
| Features | The Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, the Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
