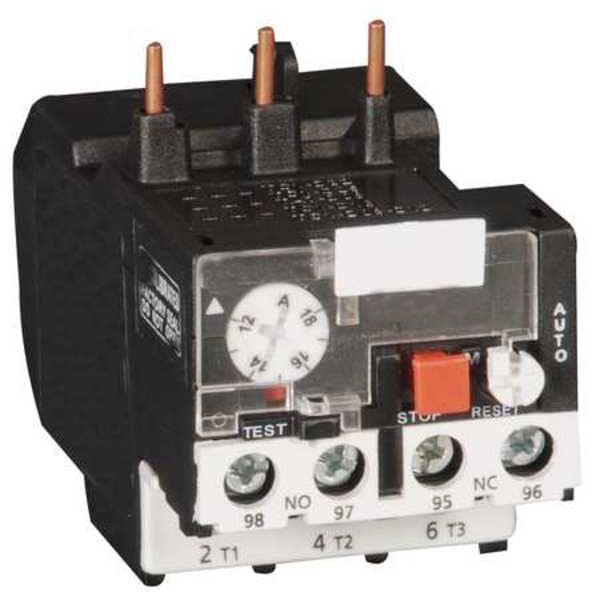

Sobrecarga de confianza, 12 a 18A, Clase 10, Bimetálico.
| Item - Relay | IEC Style Overload Relay |
|---|---|
| Item | Overload Relay |
| Use With - Contactors and Starters | Dayton IEC Contactors 9 to 18 Amps |
| Current Range | 12 to 18 A |
| Overload Relay Current Range | 12 to 18 A |
| NEMA Size | Not Applicable |
| Trip Class - Overload | 10 |
| Width | 1.73 in |
| Number of Poles | 3 |
| Height | 1.85 in |
| Sensing Method | Bimetallic |
| Reset Type - Relay | Manual, Auto |
| Depth | 3.62 in |
| For Use With | Dayton IEC Contactors 9 to 18 Amps |
| Body Width - Relay | 1.73 in |
| Trip Class | 10 |
| Body Depth - Relay | 3.62 in |
| Standards | IEC 60947-4-1, CSA, UL Listed |
| Overall Height - Relay | 2-1/2 in |
| Body Height - Relay | 1.85 in |
| Starter Type | IEC |
| Relay Style | IEC |
| Overload Protection Type | Thermal |
| Mounting Style | Direct To Contactor |
| Body Width | 1.73 in |
| Reset Type | Manual, Auto |
| Minimum Overload Relay Current Setting | 12 A |
| Overall Height | 2-1/2 in |
| Body Depth | 3.62 in |
| Maximum Overload Relay Current Setting | 18 A |
| Auxiliary Contact Form | 1NO/1NC |
| Body Height | 1.85 in |
| Package Quantity | 1 |
