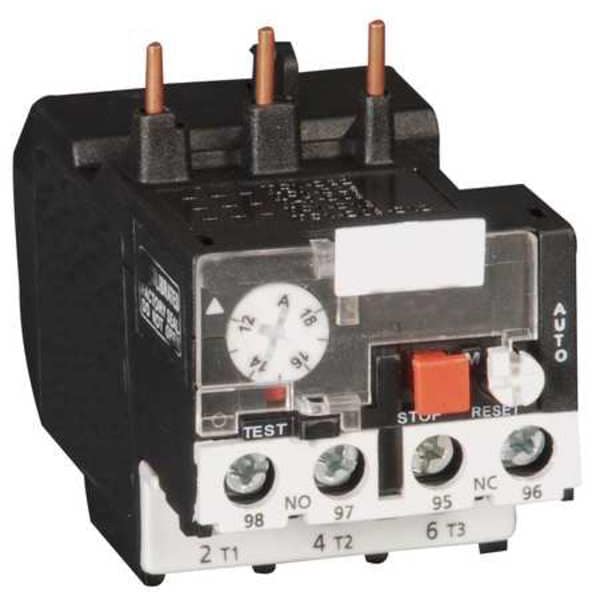

Sobrecarga confiable, 28 a 36A, Clase 10, Bimetálico.
| Item | Overload Relay |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Use With - Contactors and Starters | Dayton IEC Contactors 25 to 32 Amps |
| Current Range | 28 to 36 A |
| Overload Relay Current Range | 28 to 36 A |
| NEMA Size | Not Applicable |
| Width | 2.12 in |
| Trip Class - Overload | 10 |
| Number of Poles | 3 |
| Sensing Method | Bimetallic |
| Reset Type - Relay | Manual, Auto |
| Height | 2 in |
| Depth | 3.62 in |
| Trip Class | 10 |
| Body Height - Relay | 2 in |
| For Use With | Dayton IEC Contactors 25 to 32 Amps |
| Body Depth - Relay | 3.62 in |
| Overall Height - Relay | 3 in |
| Standards | IEC 60947-4-1, CSA, UL Listed |
| Body Width - Relay | 2.12 in |
| Starter Type | IEC |
| Reset Type | Manual, Auto |
| Relay Style | IEC |
| Maximum Overload Relay Current Setting | 36 A |
| Overall Height | 3 in |
| Body Width | 2.12 in |
| Auxiliary Contact Form | 1NO/1NC |
| Body Depth | 3.62 in |
| Body Height | 2 in |
| Mounting Style | Direct To Contactor |
| Overload Protection Type | Thermal |
| Minimum Overload Relay Current Setting | 28 A |
| Package Quantity | 1 |
