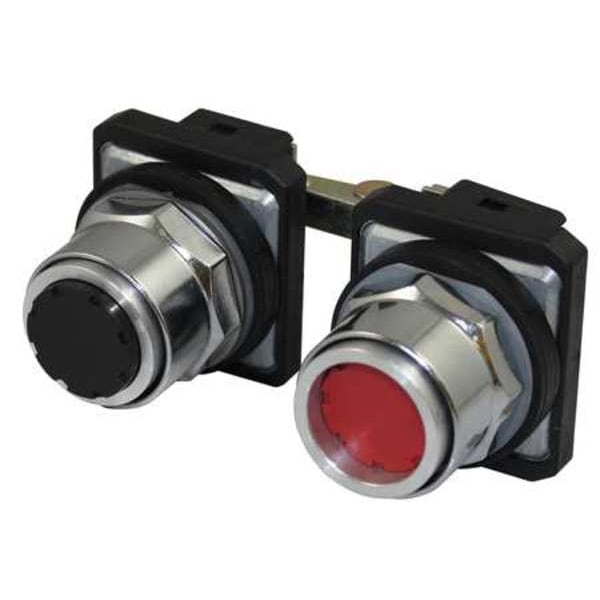

Botón pulsador colgante, 30 mm, Negro/Rojo
| Action | Maintained |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| NEMA Rating | 13, 4 |
| Type of Operator | Full Guard |
| Lamp Type | Not Applicable |
| Color | Black/Red |
| Legend | Not Applicable |
| Number of Operators | 2 |
| Item | Pendant Push Button |
| Bezel Material | Chrome Die Cast Aluminum |
| Material | Chrome Plate, Zinc Die-Cast |
| Mechanical Interlock | Yes |
| Standards | CE, cULus |
| Terminal Connection | Pressure Plate |
| IP Rating | IP65 |
| Features | Not Applicable |
| Shop By | Closeouts |
| Lamp Module Type | No Lamp Module Included |
| Series | Dayton |
| Overall Height | 3.11 in |
| Mushroom Head Diameter | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Hazardous Location Specification | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Number of Indicator Lights | 0 |
| Head Color | Red, Black |
| NEMA Enclosure Rating | 4, 13 |
| Product Type | Push Button Operators |
| Overall Depth | 1.97 in |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Operating Temperature - Maximum | 158 deg F |
| Operator Material | Plastic |
| Legend Color | Not Applicable |
| Maintained Action Release | Push |
| Manufacturer Warranty Length | 1 yr |
| Resistance Properties | Non-Magnetic |
| Push Button Style | Extended |
| Legend Background Color | Not Applicable |
| Overall Width | 3.88 in |
| Package Quantity | 1 |
