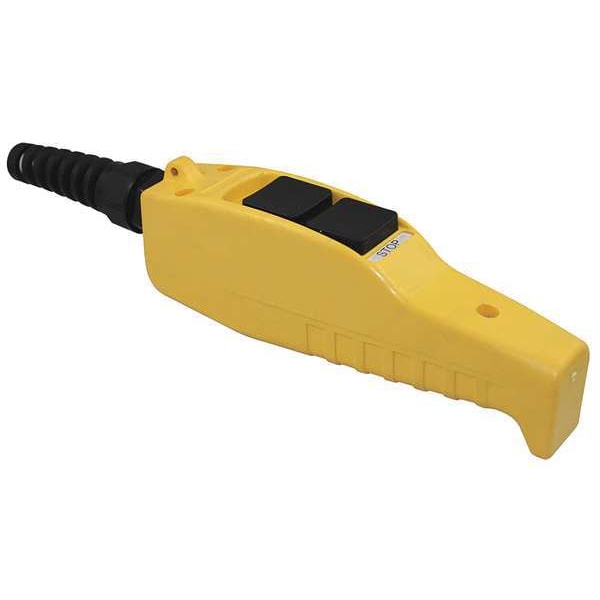

Estación de colgante, NEMA 4X, 1 normalmente abierto/1 normalmente cerrado.
| Item | Pendant Control Station |
|---|---|
| Contact Form | 1NO/1NC |
| Legend | Stop, Start |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 4x |
| Standards | CE, CSA, UL Listed |
| Housing Color | Yellow |
| Contact Rating | 10A @ 600V AC/5A @ 600V DC |
| Action | Momentary |
| Mechanical Interlock | No |
| Hub | 3/8 in to 5/8 in |
| Number of Speeds | 1 |
| NEMA Contact Rating Designation | A600, P600 |
| Width | 1.73 in |
| Housing Material | ABS, Polycarbonate |
| Height | 7.56 in |
| Depth | 2.83 in |
| Enclosure Color | Yellow |
| Enclosure Material | Plastic |
| Product Type | Pendant Control Station |
| Maintained Action Release | Not Applicable |
| Overall Width | 1.73 in |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 600 V |
| NEMA Enclosure Rating | 4X |
| Overall Depth | 2.83 in |
| Overall Height | 7.56 in |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Pilot Light Color | Not Applicable |
| Operator Configuration | Buttons |
| Hub Size - Maximum | 5/8 in |
| Package Quantity | 1 |
