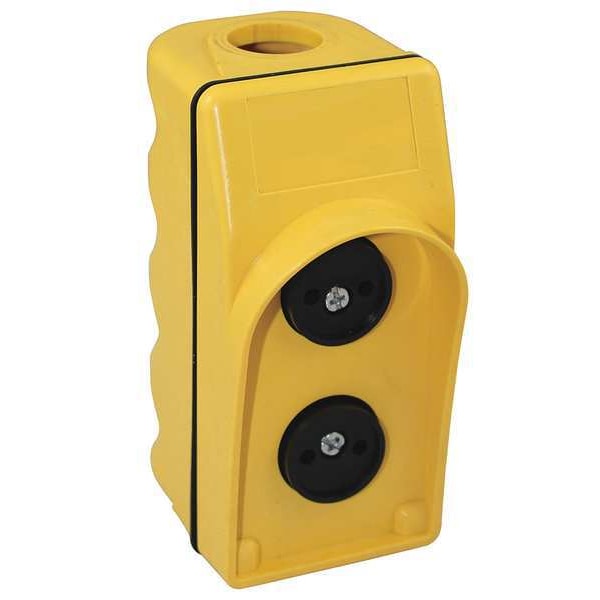

Estación colgante, Amarillo, 2 velocidades
| Item | Pendant Control Station |
|---|---|
| Contact Form | 2NO |
| Legend | No Legend |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 1, 3, 3R, 4, 4X |
| Standards | CE, CSA, UL Listed |
| Contact Rating | 10A @ 600V AC/5A @ 600V DC |
| Housing Color | Yellow |
| Action | Momentary |
| Mechanical Interlock | Yes |
| Hub | 1/2"-14 NPT |
| Height | 4.62 in |
| Width | 2.19 in |
| Depth | 2.98 in |
| NEMA Contact Rating Designation | A600, P600 |
| Housing Material | ABS, Polycarbonate |
| Number of Speeds | 2 |
| Enclosure Material | Plastic |
| Enclosure Color | Yellow |
| Product Type | Pendant Control Station |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| Hub Size - Maximum | 1/2 in |
| Overall Height | 4.62 in |
| Overall Width | 2.19 in |
| AC Contact Rating | 10 A @ 600 V |
| Maintained Action Release | Not Applicable |
| NEMA Enclosure Rating | 1, 3, 3R, 4, 4X |
| DC Contact Rating | 5 A @ 600 V |
| Pilot Light Color | Not Applicable |
| Overall Depth | 2.98 in |
| Operator Configuration | Buttons |
| Package Quantity | 1 |
