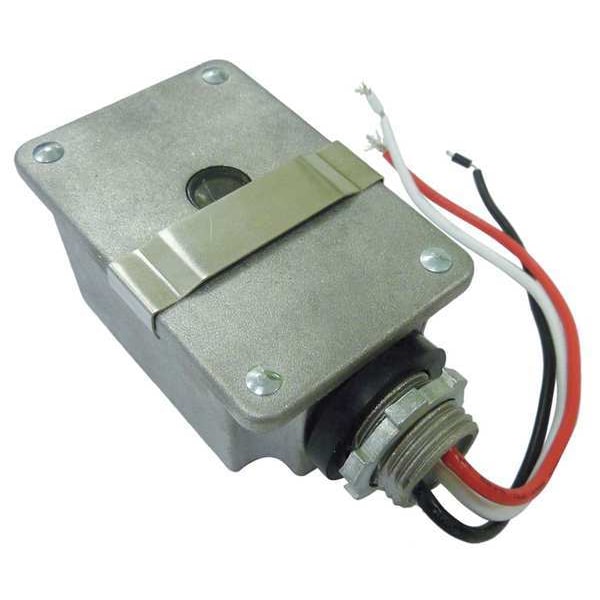

Fotocontrol, Empotrado, 120VCA
| Item | Photocontrol |
|---|---|
| Mounting | 1/2 in Conduit, Flush |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Voltage | 120V AC |
| Max. Wattage | 2,000 |
| Max. Incandescent Amps | 16.7 A |
| Max. Ballast Amps | 16.7 A |
| Foot Candles On | 10.0 to 20.0 |
| Foot Candles Off | 30 to 60 |
| Color | Gray |
| Temp. Range | -40 to 158 deg F |
| Length | 3 in |
| Description/Special Features | Built in Delay |
| Contact Form | SPST |
| Depth | 1-1/2 in |
| Standards | UL |
| Enclosure Type | Raintight |
| Manufacturers Warranty Length | 5 yr |
| Setting | Dusk to Dawn |
| Housing Material | Die-Cast Aluminum |
| Includes | Lock Nut, Washer Gasket |
| Width | 2 in |
| Length (Straight Wireway) | 3 in |
| Package Quantity | 1 |
