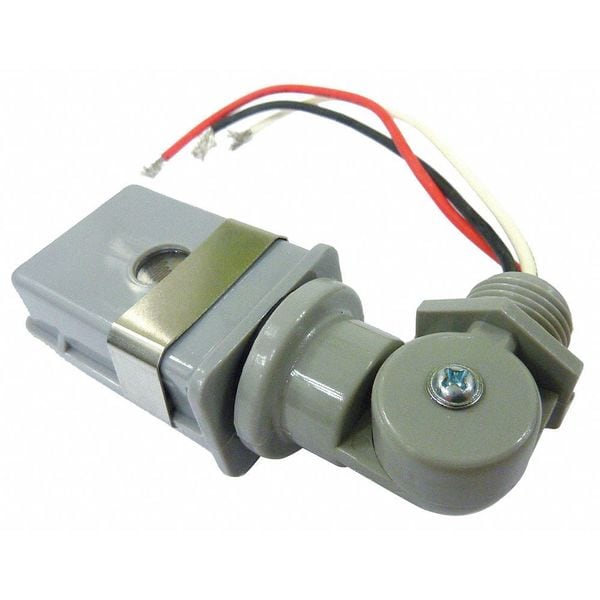

Fotoceldas empotradas, 208 a 277VCA.
| Item | Photocontrol |
|---|---|
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Mounting | 1/2 in Conduit, Flush |
| Voltage | 208 to 277V AC |
| Max. Wattage | 1,800 |
| Max. Incandescent Amps | 9 A |
| Max. Ballast Amps | 4.6 A |
| Foot Candles On | 10.0 to 20.0 |
| Foot Candles Off | 30 to 60 |
| Color | Gray |
| Temp. Range | -40 to 158 deg F |
| Housing Material | Polycarbonate |
| Standards | UL |
| Length | 2-7/8 in |
| Contact Form | SPST |
| Width | 1-1/3 in |
| Setting | Dusk to Dawn |
| Manufacturers Warranty Length | 5 yr |
| Enclosure Type | Raintight |
| Description/Special Features | Built in Delay |
| Depth | 1-1/3 in |
| Includes | Lock Nut, Washer Gasket |
| Length (Straight Wireway) | 2-7/8 in |
| Package Quantity | 1 |
