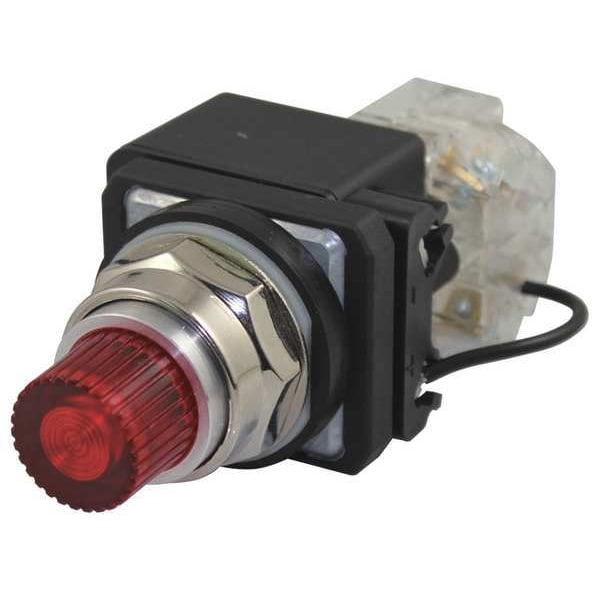

Piloto luminoso, LED, 120VCA, 30mm, cromo, RD
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Red |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Pressure Plate |
| Lens Material | Plastic |
| Lens Type | Fresnel |
| Size | 30 mm |
| Lamp Module Type | Transformer |
| Basic Material | Metal |
| Replacement Lamps | N/A |
| Standards | CE, cULus |
| Includes | Lens and LED Lamp, Light Module |
| Lamp Voltage | 6V AC/DC |
| NEMA Rating | 13, 4 |
| Body Material | Zinc Die Cast |
| IP Rating | IP65 |
| Legend | Not Applicable |
| Lamp Color | Red |
| Manufacturer Warranty Length | 1 yr |
| Includes Lens | Lens Included |
| Includes Lamp Module | Lamp Module Included |
| Overall Width | 1.73 in |
| Lens Color | Red |
| Voltage Rating - Maximum | 120 V AC |
| Body Finish | Chrome Plated |
| NEMA Enclosure Rating | 13, 4 |
| Hazardous Location Specification | Not Applicable |
| Overall Height | 4.39 in |
| Resistance Properties | Non-Magnetic |
| Body Color | Silver |
| Lamp Voltage - Maximum | 6 V AC/DC |
| Overall Depth | 2.17 in |
| Panel Cutout Diameter | 30 mm |
| Series | Dayton |
| Includes Push-To-Test | Push-To-Test Included |
| Package Quantity | 1 |
