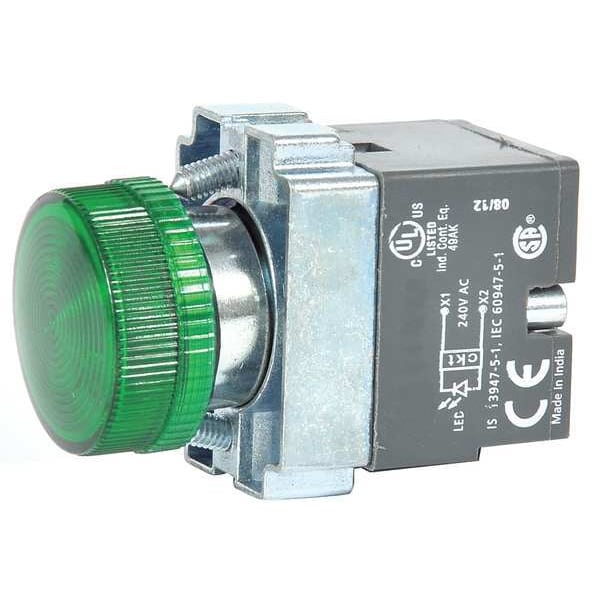

Indicador luminoso piloto, LED, 22mm, 24VAC/DC, Rojo/verde, Cromo
| Item | Pilot Light |
|---|---|
| Voltage | 24V AC/DC |
| Color | Green |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Lens Material | Plastic |
| Size | 22 mm |
| Lens Type | Smooth |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4x |
| Body Material | Metal |
| Standards | CE, CSA, IEC, UL Listed |
| Includes | Light Module |
| Includes Lens | Lens Included |
| Series | Dayton |
| Includes Push-To-Test | No Push-To-Test Included |
| Includes Lamp Module | Lamp Module Included |
| Body Finish | Chrome Plated |
| Panel Cutout Diameter | 22 mm |
| Voltage Rating - Maximum | 24 V AC/DC |
| Lens Color | Green |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 1, 2 |
| Package Quantity | 1 |
