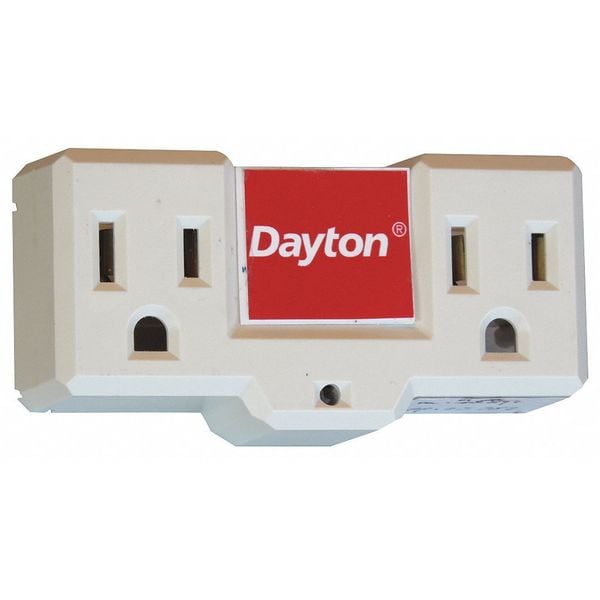

Plug-In Freeze Protection Thermostat, Open on Rise, ON at 35 Degrees F, OFF at 45 Degrees F
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120V AC |
| Sensor Type | Bi-Metal |
| Differential | 10 Degrees F |
| Display Type | No Display |
| Thermostat Control Range | Off at 45 Degrees F, On at 35 Degrees F |
| Switch Type | SPDT |
| Color | Beige |
| Width | 3-5/16 in |
| Height | 1-45/64 in |
| Enclosure Type | PVC |
| Item | Plug-In Freeze Protection Thermostat |
| Control Range | ON at 35 Degrees F, OFF at 45 Degrees F |
| For Use With | Portable Heating Equipment |
| Resistive Amps @ 120V | 15 A |
| Depth | 1-7/64 in |
| Thermostat Voltage | 120V AC |
| Inductive Amps @ 120V | 15 A |
| Standards | UL Listed |
| Mounting | Horizontal or Vertical |
| Contact Rating Resistive @ 120V | 15 A |
| Application | Heat Only |
| Includes | Grounded Plug with 2 Receptacles |
| Thermostat Type | Plug-In Freeze Protection |
| Dual Transformer Compatible | No |
| Key Pad Lockout | No |
| Temperature Scale | Fahrenheit |
| Compatible System Type | Portable Heating Equipment |
| Enclosure Color | Beige |
| Minimum Control Temperature | 35 deg F |
| Switch Type/Action | Open, SPDT on Rise |
| Electrical Connection Type | Receptacle Mount |
| Temperature Control Range | 35 to 45 deg F |
| Contact Rating | 120 V AC |
| Housing Material | PVC |
| Temperature settings per day | 1 |
| Programming Capability | Not Programmable |
| Housing Color | Beige |
| Maximum Control Temperature | 45 deg F |
| Overall Height | 1-11/16 in |
| Overall Width | 3-5/16 in |
| Enclosure Rating/Material | Not Rated, PVC |
| Enclosure NEMA Rating | Not Rated |
| System Settings | Auto-Cool-Heat-Off |
| Temperature Differential | 10 Degrees F |
| Amperage | 15 A |
| Overall Depth | 1-1/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
