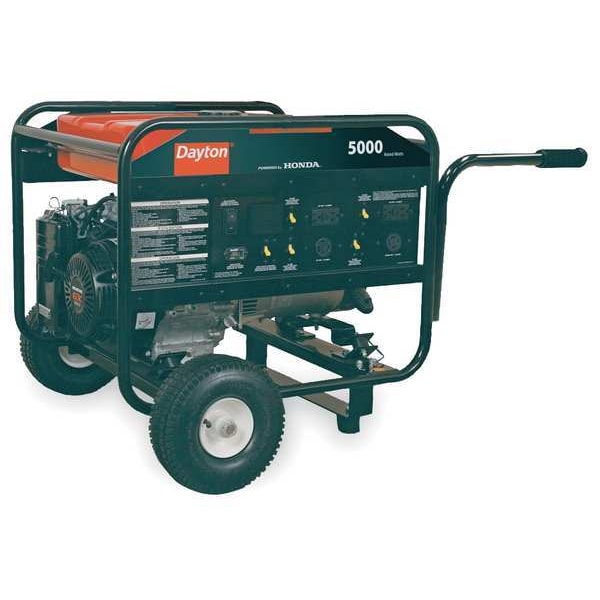

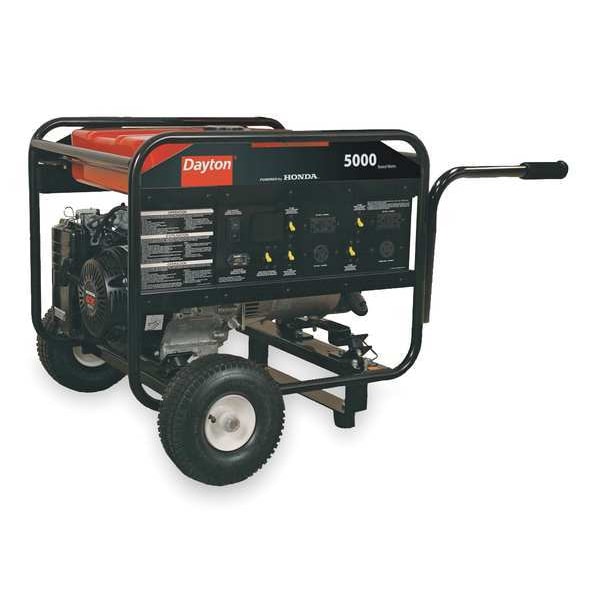

Portable Generator, Gasoline, 5,000 W Rated, 9,630 W Surge, Recoil Start, 120/240V AC, 41.7/20.8 A
| Engine Brand | Honda |
|---|---|
| Item | Portable Generator |
| Fuel Type | Gasoline |
| Generator Rated Watts | 5,000 W |
| Surge Watts | 9,630 W |
| Rated Voltage | 120/240V AC |
| Starter Type | Recoil |
| Generator Amps | 41.7/20.8 |
| Generator Run Time @ 1/2 Load | 11 hr 24 min |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| Run Time @ Full Load | 8 hr |
| Low Oil Shut Down | Yes |
| Engine Alternator | Brushless |
| Wheel Kit Included | Yes |
| Portable Generator Technology | Conventional |
| Generator Height | 28 in |
| Engine HP | 13 |
| Run Time Hour Meter | Yes |
| Parallel Configuration Capable | No |
| Length | 29 in |
| Full Power Switch | No |
| Generator Mfr. Warranty Details | 2 yr |
| Fuel Tank Capacity | 7.3 gal |
| Engine Displacement | 389 cc |
| Generator Outlets | 5-20R 120VAC Duplex GFCI (2), L5-30R 120VAC Locking Receptacle (1), L14-20R 120/240VAC Locking Receptacle (1) |
| Includes | Idle Control, Voltmeter |
| Sound Level dB | 77.1 |
| Length (Straight Wireway) | 29 in |
| Noise Level | 77 dBA |
| Run Time @ 1/4 Load - Propane (LPG) | Not Applicable |
| Cylinder Material | Cast Iron |
| Run Time @ 1/2 Load - Gasoline/Diesel | 11 hr 24 min |
| Maximum Current @ 240V AC - Propane (LPG) | Not Applicable |
| Circuit Breaker | Yes |
| Includes GFCI Outlets | Yes |
| Starting Wattage - Natural Gas (NG) | Not Applicable |
| Safety Features | Low Oil Shutdown |
| Engine Horsepower | 13 HP |
| Running Wattage - Gasoline/Diesel | 5,000 W |
| Rated Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Generator Technology | Conventional |
| Maximum Current @ 120V AC - Propane (LPG) | Not Applicable |
| Run Time @ Full Load - Gasoline/Diesel | 8 hr |
| Maximum Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Maximum Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Run Time @ Full Load - Propane (LPG) | Not Applicable |
| Circuit Breakers Included | (1) 20 A Toggle Double Pole, (1) 30 A Toggle Single Pole, (2) 20 A Toggle Single Pole |
| Run Time @ 1/2 Load - Propane (LPG) | Not Applicable |
| Outlets Included | 5-20R GFCI Duplex, L14-20R, L5-30R |
| Starting Wattage - Gasoline/Diesel | 9,630 W |
| Overall Length | 29 in |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Overall Height | 28 in |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Standards | CSA Certified |
| Running Wattage - Propane (LPG) | Not Applicable |
| Rated Frequency | 60 Hz |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Rated Current @ 240V AC - Gasoline/Diesel | 20.8 A |
| Manufacturer Warranty | 2 yr |
| Rated Current @ 120V AC - Gasoline/Diesel | 41.7 A |
| Includes Wheel Kit | Yes |
| Air Cleaner Type | Foam |
| Inverter Frame Type | Not Applicable |
| Rated Current @ 240V AC - Propane (LPG) | Not Applicable |
| Running Wattage - Natural Gas (NG) | Not Applicable |
| Starting Wattage - Propane (LPG) | Not Applicable |
| Overall Width | 32 in |
| Width | 32 in |
| Generator Starter Type | Recoil |
| Generator Engine Brand | Honda |
| Generator Voltage | 120/240V AC |
| Generator Fuel Type | Gasoline |
| Package Quantity | 1 |
