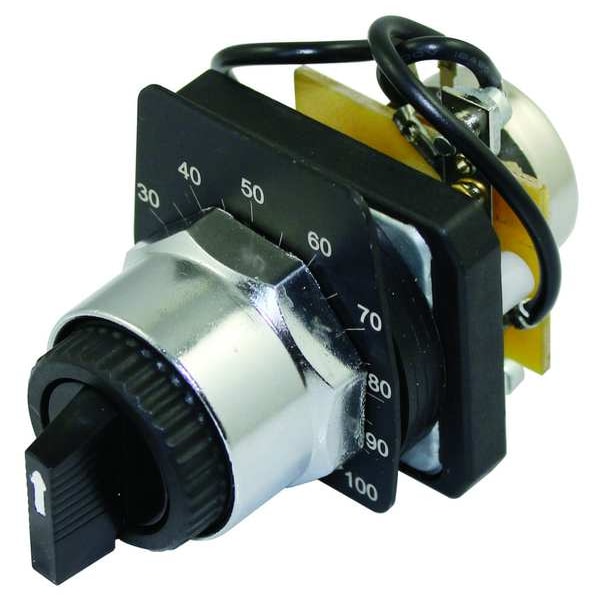

Potenciómetro, 30mm, de uso pesado, 10000 Ohms
| Item | Potentiometer |
|---|---|
| Watts | 2 |
| Ohms | 10,000 |
| Max. Voltage | 500 V AC |
| Max. Amps | 0.004 |
| NEMA Rating | 13, 4 |
| Dial Plate Graduations | 0 to 100% |
| Size | 30 mm |
| Knob Style | Standard |
| Resistance Properties | Corrosion Resistant |
| IP Rating | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Overall Height | 3.35 in |
| Power Rating | 2 W |
| Resistance Rating | 10,000 ohms |
| Includes Dial Plate | Dial Plate Included |
| Current Rating | 4 mA |
| Overall Width | 1.73 in |
| Overall Depth | 1.97 in |
| NEMA Enclosure Rating | 13, 4 |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Maximum | 158 Degrees F |
| Series | Potentiometer SWITCH |
| Voltage Rating - Maximum | 500 V AC |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
