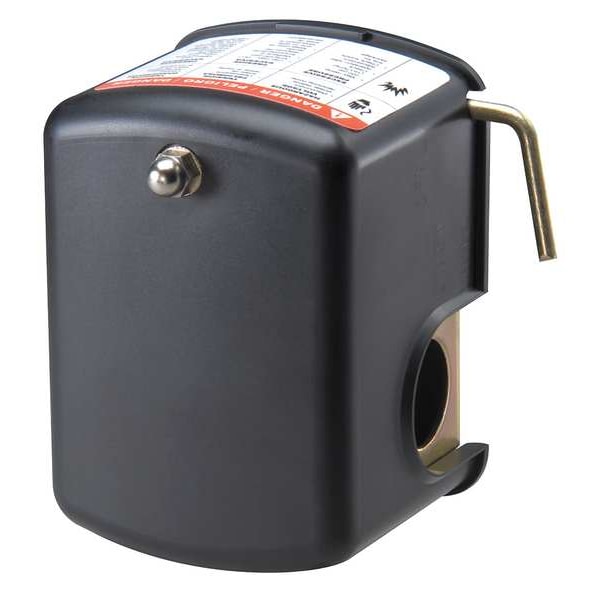

Interruptor de presión, (1) Puerto, 1/4 de pulgada Hembra, DPST, de 10 a 100 psi, Acción Estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Water Pump |
| Manual Switch Action | Auto, Off |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 20/40 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 15 to 50 psi |
| Pressure Switch Range | 10 to 100 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| AC Contact Rating | 20/17A @ 120/240V |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| Temp. Range | -22 Degrees to 250 Degrees F |
| Series | Dayton |
| NEMA Rating | 1 |
| HP @ 1 Phase - 240V | 2 hp |
| Standards | CSA Certified, UL Listed |
| Phase | Single |
| Contact Form | DPST |
| Unloader | No Unloader |
| Product Type | Air Pressure Switch, Water |
| Pressure - Minimum | 10 psi |
| Pressure Switch Action Type | Standard |
| NEMA Enclosure Rating | 1 |
| Number of Pressure Connection Ports | 1 |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Actuator Style | Diaphragm |
| Operating Temperature - Minimum | -22 deg F |
| Factory Off Setting | 40 psi |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Operating Temperature - Maximum | 250 deg F |
| Switch Function Configuration | Auto, Off |
| Manufacturer Warranty Length | 1 yr |
| Differential Pressure - Minimum | 15 psi |
| Differential Pressure - Maximum | 50 psi |
| Factory On Setting | 20 psi |
| Pressure Connection Type | 1/4" FNPT |
| Pressure - Maximum | 100 psi |
| Package Quantity | 1 |
