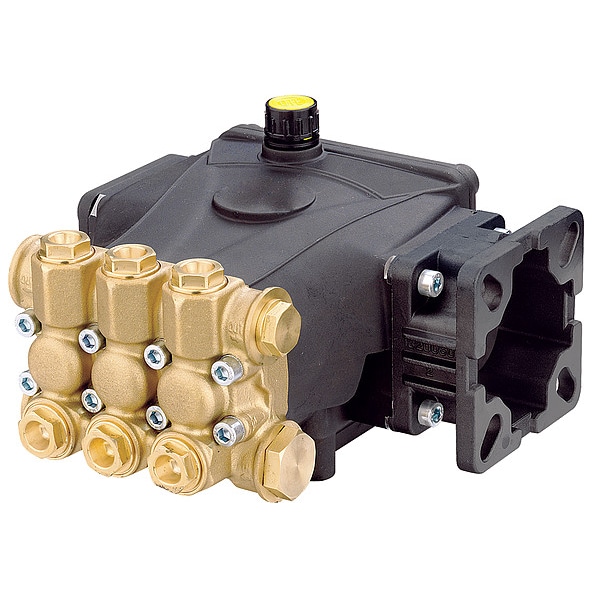

Pressure Washer Pump, 2.5 GPM, 1/2F x 3/8F
| Item | Pressure Plunger Pump |
|---|---|
| Type | Direct-Mount |
| Flow Capacity (GPM) | 2.5 gpm |
| RPM | 3,400 |
| Shaft Dia. | 3/4 in |
| Inlet Port (In.) | 1/2 |
| Discharge Pressure (PSI) | 2,700 |
| Manifold Material | Forged Brass |
| Max. Inlet Pressure (PSI) | 50 |
| Connecting Rod | Aluminum |
| Plunger | Ceramic |
| HP Required @ 1000 PSI | 2.2 HP |
| HP Required @ 2000 PSI | 4.4 HP |
| Max. Fluid Temp. (F) | 140 |
| Application | High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting |
| Crankshaft | Hardened Steel |
| Seal | Buna N Chevron and Lip Seal Packing, Cotton Duct |
| Width (In.) | 7-1/2 |
| Height (In.) | 4.9 |
| HP Required @ 2500 PSI | 5.6 HP |
| Driver Type | Gasoline Engine |
| Pump Head | Forged Brass |
| Lubrication | Oil Bath |
| Length (In.) | 7.2 |
| Crankcase | Precision Die Cast |
| Discharge Port (In.) | 3/8 |
| Bearings | Ball, Needle |
| HP Required @ 1500 PSI | 3.3 HP |
| HP Required @ 500 PSI | 1.1 HP |
| Flange Type | Gas Engine |
| Shaft Type | Hollow |
| Discharge Pressure (Maximum) | 2,700 psi |
| Drive Type | Direct-Mount |
| Crankshaft Material | Hardened Steel |
| Hydraulic Motor Pressure @ 500 psi | Not Applicable |
| Check Valve Material | Not Applicable |
| Overall Width | 7-1/2 in |
| Pump Head Material | Forged Brass |
| Series Family | RCV |
| Hydraulic Motor Pressure @ 3000 psi | Not Applicable |
| Discharge Connection Type | BSP |
| Required Electric Motor Horsepower (Maximum) | Not Applicable |
| Required Gasoline Engine Horsepower (Maximum) | 5 HP |
| Connecting Rod Material | Aluminum |
| Intake Connection Type | BSP |
| Intake Connection Size | 1/2 in |
| Plunger Material | Ceramic |
| Seal Material | Buna-N |
| Crankcase Material | Die Cast Aluminum |
| Overall Height | 4.9 in |
| Media Temperature (Maximum) | 140 Degrees F |
| Discharge Connection Size | 3/8 in |
| Wetted Material | Brass |
| Hydraulic Motor Flow Rate (Maximum) | Not Applicable |
| Flow Rate (Maximum) | 2.5 gpm |
| Motor Speed (Maximum) | 3,400 rpm |
| Shaft Outer Diameter | 3/4 in |
| Number of Pistons | 3 |
| Hydraulic Motor Pressure @ 2000 psi | Not Applicable |
| Electrical Connection Type | Not Applicable |
| Manufacturers Warranty Length | 5 yr |
| Power Source | Not Applicable |
| Hydraulic Motor Pressure @ 1000 psi | Not Applicable |
| Seal Type | Chevron, Lip, Cotton Duct |
| Bearing Type | Ball, Needle Roller |
| Overall Length | 7.2 in |
| Hydraulic Motor Pressure @ 1500 psi | Not Applicable |
| Hydraulic Motor Pressure @ 2500 psi | Not Applicable |
| Operating Pressure (Maximum) | 2,700 psi |
| Piston Design | Triplex |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
