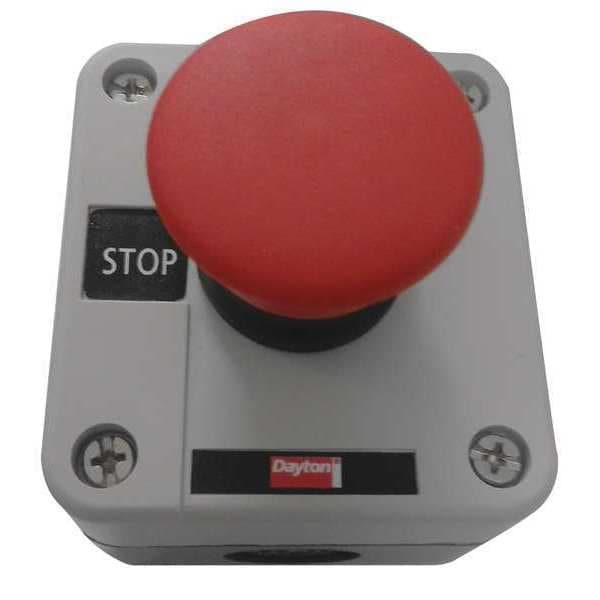

Estación de Control con Botón de Pulsación, 1NC, Cabeza de Champiñón
| Item | Control Station |
|---|---|
| Contact Form | 1NC |
| Legend | Stop |
| Type of Operator | Push Button with Mushroom Head |
| Number of Pilot Lights | 0 |
| Number of Operators | 1 |
| NEMA Rating | 4, 4X |
| Size | 22 mm |
| Contact Rating | 10A @ 600V AC, 2.5A @ 24V DC |
| Standards | cULus |
| Head Material | Plastic |
| Action | Momentary |
| Mechanical Interlock | No |
| Mounting | Wall |
| NEMA Contact Rating Designation | A600, Q600 |
| Width | 2.92 in |
| Enclosure Color | Gray |
| Enclosure Material | Thermoplastic |
| Operator Color | Red |
| Height | 1.98 in |
| Depth | 2.69 in |
| Panel Cutout Diameter | 22 mm |
| DC Contact Rating | 2.5 A @ 24 V |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| NEMA Enclosure Rating | 4, 4X |
| Overall Depth | 2.69 in |
| Operator Configuration | Push Buttons |
| Pilot Light Color | Not Applicable |
| Overall Height | 1.98 in |
| AC Contact Rating | 10 A @ 600 V |
| Product Type | Control Station |
| Maintained Action Release | Not Applicable |
| Overall Width | 2.92 in |
| Package Quantity | 1 |
