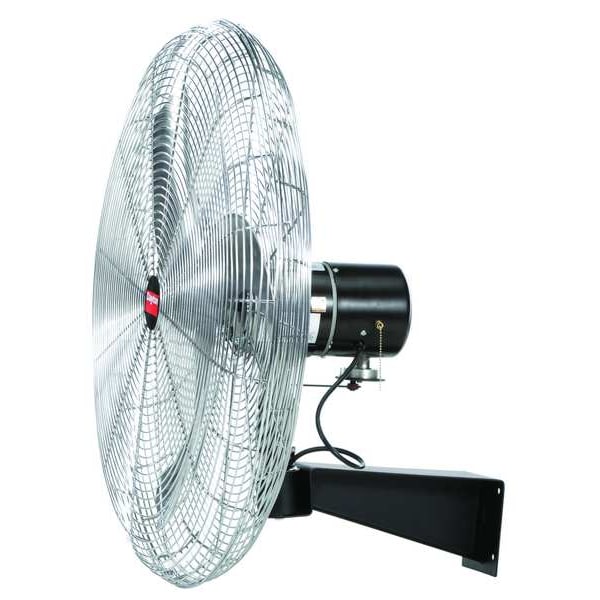

Quiet Design Air Circulator, Wall Mount, 24 in Blade Dia, 115V, 3,325/4,556/5,588 cfm
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 3,325/4,556/5,588 cfm |
| Drive Type | Direct Drive |
| Blade Material | Cast Aluminum |
| Sound Level | 72/65/57 dBA |
| Item | Air Circulator |
| Number of Conductors | 3 |
| CFM High | 5,588 |
| Air Velocity @ 80 Ft. | 125 fpm |
| Mobile/Stationary | Stationary |
| Width | 27 in |
| Thermal Protection | Automatic |
| Shaft Dia. | 5/8 in |
| Assembled | No |
| Environmental Applications | Industrial |
| Wire Guard Finish | Nickel Chrome |
| Watts | 300 W |
| Air Velocity @ 40 Ft. | 300/243/189 fpm |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Max. Depth | 21-3/4 in |
| Housing Material | Steel |
| Motor Type | Permanent Split Capacitor |
| Hz | 60 |
| Fan Mounting Location | Wall |
| Outside Dia. | 27 in |
| NEMA Plug Configuration | 5-15p |
| Air Velocity @ 60 Ft. | 200/162/126 fpm |
| Air Velocity @ 10 Ft. | 700/567/441 fpm |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| Height | 27 in |
| CFM Low | 3,325 |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Ambient Temp. | 105 deg F |
| Standards | UL, cUL, OSHA |
| CFM/Watt | 18.6 |
| CFM Medium | 4,556 |
| Fan Style | Quiet Design |
| Number of Blades | 3 |
| Guard Material | Steel |
| Fan Accessory Style | Quiet Design |
| Includes | Mounting Device and Mounting Bolts |
| Motor RPM | 1,110/900/700 RPM |
| Air Velocity @ 20 Ft. | 500/405/315 fpm |
| Requires | Assembly |
| Amps | 2.5 |
| Fan Cord Length | 15 ft |
| Fan Housing Material | Steel |
| Assembly Required | Yes |
| Depth | 21-3/4 in |
| RPM | 1110/900/700 |
| Wheeled Base | Stationary |
| Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
