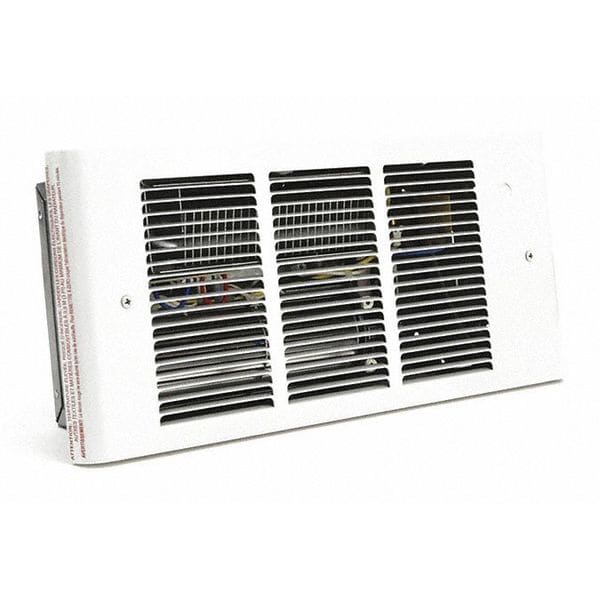

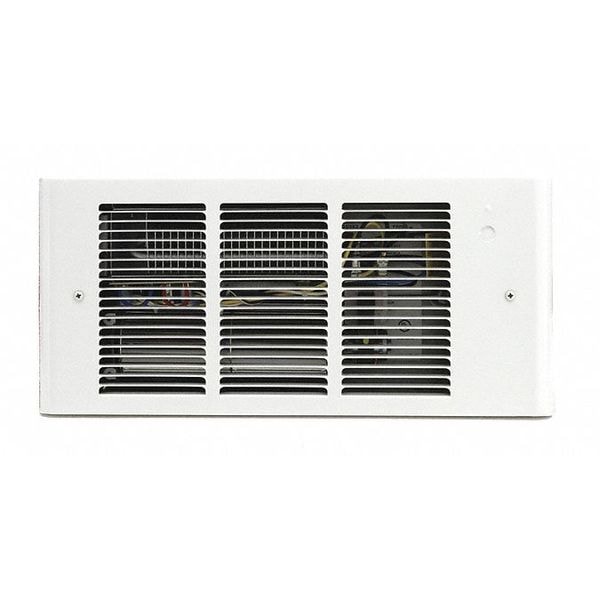

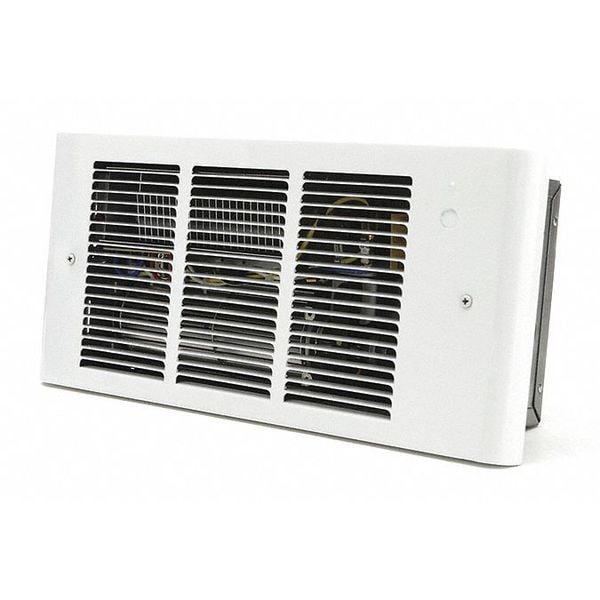

Recessed Electric Wall-Mount Heater, Recessed, 1500/1125/750/375, 2000/1500/1000/500 W, 208/240V AC
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Light Commercial/Residential Register Style |
| Watts | 1500/1125/750/375, 2000/1500/1000/500 |
| BtuH | 5118/3840/2560/1280, 6824/5118/3413/1706 |
| Heater Voltage | 208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14" |
| Color | White |
| Amps AC | 7.2/5.4/3.6/1.8, 8.3/6.3/4.2/2.1 |
| Wall Opening Depth | 4-1/2" |
| Features | Double Pole Thermostat, Thermal Cutout With Indicator Light and One Time Thermal Fuse |
| Grille Material | Steel |
| Standards | ETL Listed, cETL Listed |
| Item | Recessed Electric Wall-Mount Heater |
| Housing Depth | 4-3/8 in |
| Wall Opening Height | 6-3/4 in |
| Air Temp. Rise | 158 deg F |
| Housing Width | 14-3/8 in |
| Hz | 60 |
| Grille Depth | 3/4 in |
| Finish | Baked Enamel |
| Housing Height | 6-5/8 in |
| Grille Height | 7-3/4 in |
| Mounting Type | Recessed |
| Manufacturers Warranty Length | 1 yr |
| Grille Width | 16-7/8 in |
| Voltage | 208/240V AC |
| Phase | 1 |
| Air Flow | 50 cfm |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Filter Included | No |
| Setback Control | No |
| Programming Capability | Not Programmable |
| Rough-In Dimensions - H x W x D | 6-3/4 in x 14 in x 4-1/2 in |
| Frequency | 60 Hz |
| Smart Connectivity | No Connectivity |
| Heating Method | Fan Forced |
| Wattage Output | 375 W/750 W/1125 W/1500 W, 500 W/1000 W/1500 W/2000 W |
| Hold Function | No |
| Thermal Overheat Protection | One-Time Thermal Fuse |
| Disconnect Switch | Yes |
| Tamper Resistant | No |
| Rough-In Height | 6-3/4 in |
| Minimum Mounting Distance from Ceiling | 36 in |
| Voltage, Phase | 208/240V AC, 1-phase |
| Wattage Field Convertible | Yes |
| Heater Mounting Position | Horizontal Burn |
| Thermostat Included | Unit-Mounted |
| Grille Color | White |
| Minimum Mounting Height from Floor | 4 in |
| Rough-In Depth | 4-1/2 in |
| Automatic Fan Delay (On/Off) | Yes |
| Grille Finish | Enamel |
| Occupancy Sensor | No |
| Fan Only Operation | No |
| Control Type | Mechanical Selector Dial |
| Housing Material | Steel |
| Remote Control Functions | No Remote Control Included |
| Rough-In Width | 14 in |
| Thermostat Contact Type | Single Pole |
| Building Management System Compatible | No |
| Amperage | 1.8 A/3.6 A/5.4 A/7.2 A, 2.1 A/4.2 A/6.3 A/8.3 A |
| Heating Capacity | 1,280/2,560/3,840/5,118 BtuH, 1,706/3,413/5,118/6,824 BtuH |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
