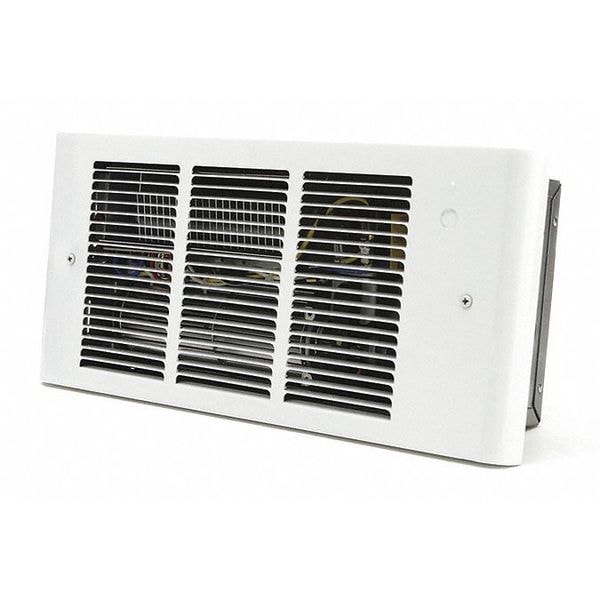

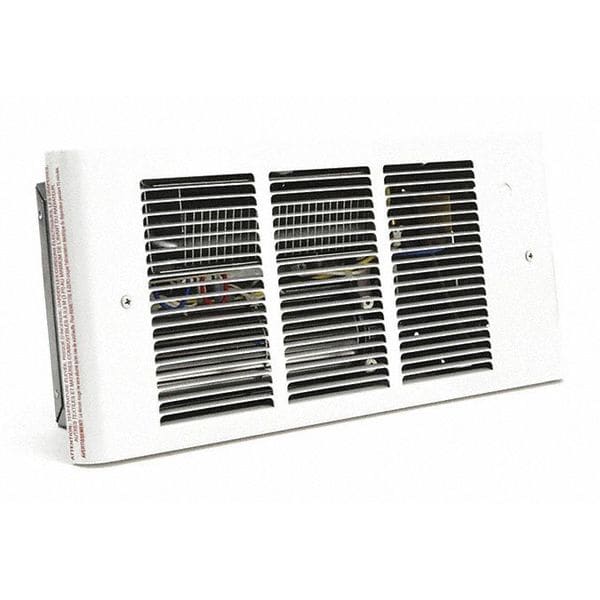

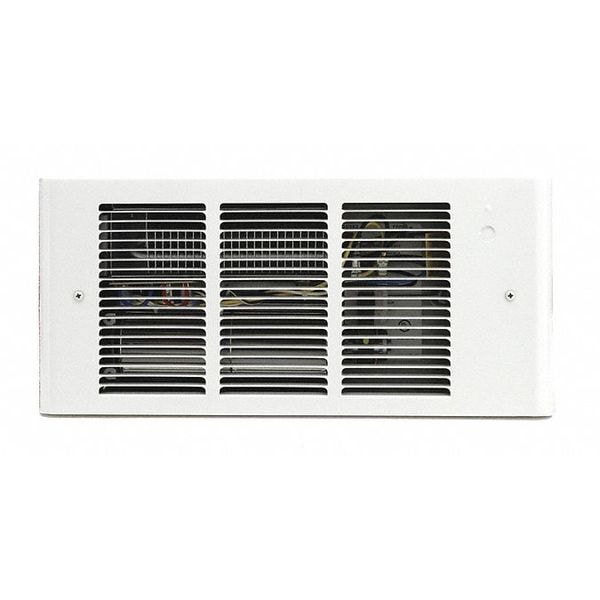

Recessed Electric Wall-Mount Heater, Recessed, 1500/1125/750/375 W, 120V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Light Commercial/Residential Register Style |
| Watts | 1500/1125/750/375 |
| BtuH | 5118/3840/2560/1280 |
| Heater Voltage | 120 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-1/2" |
| Color | White |
| Amps AC | 12.5/9.4/6.3/3.2 |
| Wall Opening Depth | 4-1/2" |
| Hz | 60 |
| Finish | Baked Enamel |
| Air Temp. Rise | 117 deg F |
| Wall Opening Height | 6-3/4 in |
| Grille Material | Steel |
| Grille Width | 16-7/8 in |
| Housing Depth | 4-3/8 in |
| Manufacturers Warranty Length | 1 yr |
| Standards | ETL Listed, cETL Listed |
| Features | Thermal Cutout With Indicator Light and One Time Thermal Fuse |
| Housing Height | 6-5/8 in |
| Grille Depth | 3/4 in |
| Item | Recessed Electric Wall-Mount Heater |
| Mounting Type | Recessed |
| Grille Height | 7-3/4 in |
| Housing Width | 14-3/8 in |
| Voltage | 120V AC |
| Air Flow | 50 cfm |
| Phase | 1 |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Frequency | 60 Hz |
| Grille Finish | Enamel |
| Tamper Resistant | No |
| Rough-In Depth | 4-3/8 in |
| Remote Control Functions | No Remote Control Included |
| Heating Method | Fan Forced |
| Filter Included | No |
| Grille Color | White |
| Rough-In Height | 6-5/8 in |
| Rough-In Width | 14-3/8 in |
| Wattage Output | 375 W/750 W/1125 W/1500 W |
| Control Type | Mechanical Selector Dial |
| Building Management System Compatible | No |
| Voltage, Phase | 120V AC, 1-phase |
| Automatic Fan Delay (On/Off) | Yes |
| Thermostat Included | No |
| Wattage Field Convertible | Yes |
| Rough-In Dimensions - H x W x D | 6-5/8 in x 14-3/8 in x 4-3/8 in |
| Housing Material | Steel |
| Hold Function | No |
| Occupancy Sensor | No |
| Heating Capacity | 1,280/2,560/3,840/5,118 BtuH |
| Fan Only Operation | No |
| Smart Connectivity | No Connectivity |
| Minimum Mounting Height from Floor | 4 in |
| Amperage | 3.2 A/6.3 A/9.4 A/12.5 A |
| Disconnect Switch | Yes |
| Heater Mounting Position | Horizontal Burn |
| Setback Control | No |
| Minimum Mounting Distance from Ceiling | 36 in |
| Programming Capability | Not Programmable |
| Thermal Overheat Protection | One-Time Thermal Fuse |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
