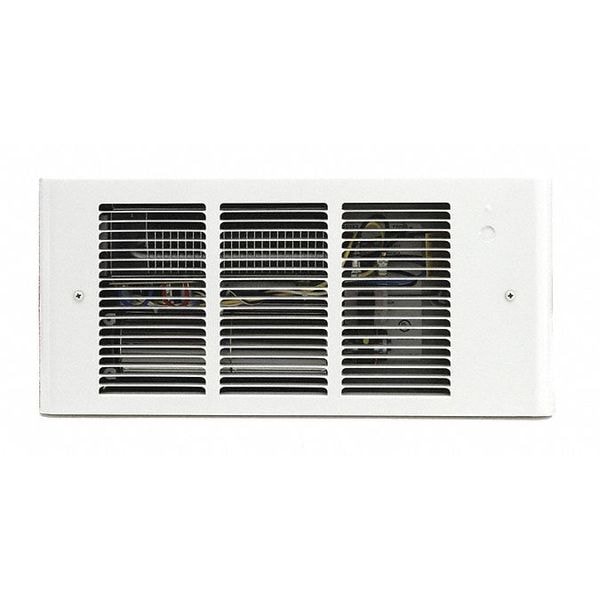

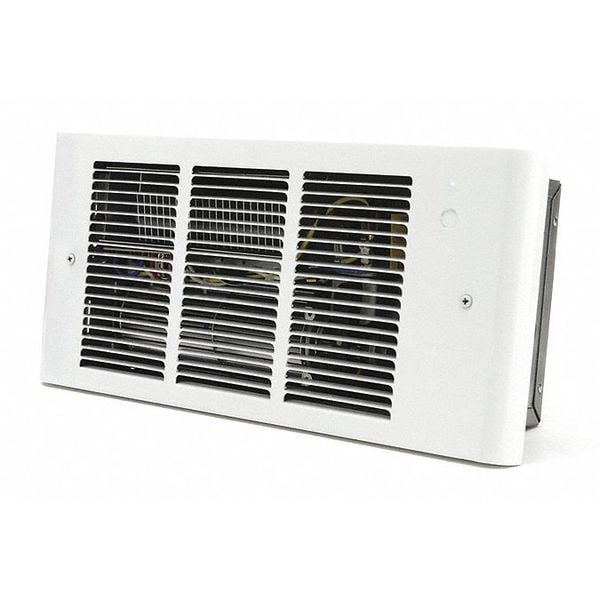

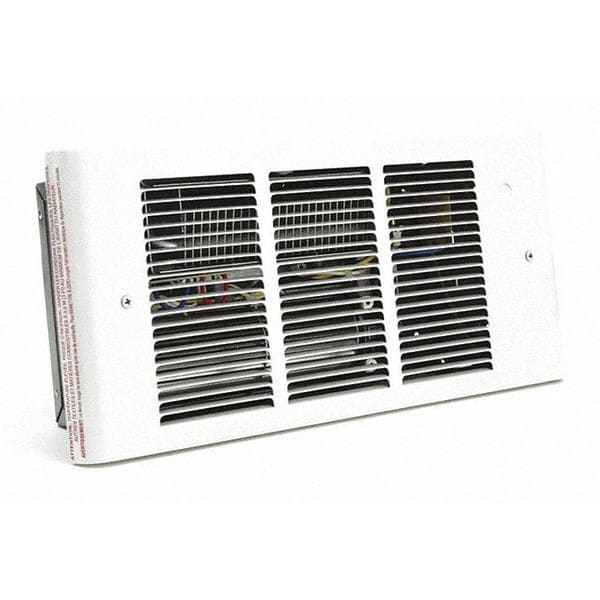

Recessed Electric Wall-Mount Heater, Recessed, 1800/1350/900/450, 2400/1800/1200/600 W, 208/240V AC
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Light Commercial/Residential Register Style |
| Watts | 1800/1350/900/450, 2400/1800/1200/600 |
| BtuH | 6142/4608/3072/1536, 8190/6142/4095/2047 |
| Heater Voltage | 208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14" |
| Color | White |
| Amps AC | 8.7/6.5/4.3/2.2, 10.0/7.5/5.0/2.5 |
| Wall Opening Depth | 4-1/2" |
| Grille Depth | 3/4 in |
| Grille Material | Steel |
| Features | Double Pole Thermostat, Thermal Cutout With Indicator Light and One Time Thermal Fuse |
| Wall Opening Height | 6-3/4 in |
| Housing Width | 14-3/8 in |
| Housing Height | 6-5/8 in |
| Manufacturers Warranty Length | 1 yr |
| Mounting Type | Recessed |
| Finish | Baked Enamel |
| Grille Height | 7-3/4 in |
| Hz | 60 |
| Grille Width | 16-7/8 in |
| Standards | ETL Listed, cETL Listed |
| Item | Recessed Electric Wall-Mount Heater |
| Air Temp. Rise | 181 deg F |
| Housing Depth | 4-3/8 in |
| Voltage | 208/240V AC |
| Phase | 1 |
| Air Flow | 50 cfm |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Voltage, Phase | 208/240V AC, 1-phase |
| Building Management System Compatible | No |
| Minimum Mounting Height from Floor | 4 in |
| Smart Connectivity | No Connectivity |
| Housing Material | Steel |
| Fan Only Operation | No |
| Hold Function | No |
| Heater Mounting Position | Horizontal Burn |
| Thermostat Contact Type | Double Pole |
| Occupancy Sensor | No |
| Wattage Field Convertible | Yes |
| Tamper Resistant | No |
| Grille Color | White |
| Programming Capability | Not Programmable |
| Frequency | 60 Hz |
| Control Type | Mechanical Selector Dial |
| Setback Control | No |
| Amperage | 2.2 A/4.3 A/6.5 A/8.7 A, 2.5 A/5A/7.5 A/10 A |
| Heating Capacity | 1,536/3,072/4,608/6,142 BtuH, 2,047/4,095/6,142/8,190 BtuH |
| Heating Method | Fan Forced |
| Rough-In Height | 6-3/4 in |
| Grille Finish | Enamel |
| Rough-In Width | 14 in |
| Minimum Mounting Distance from Ceiling | 36 in |
| Remote Control Functions | No Remote Control Included |
| Thermostat Included | Unit-Mounted |
| Rough-In Depth | 4-1/2 in |
| Wattage Output | 450 W/900 W/1350 W/1800 W, 600 W/1200 W/1800 W/2400 W |
| Thermal Overheat Protection | One-Time Thermal Fuse |
| Automatic Fan Delay (On/Off) | No |
| Rough-In Dimensions - H x W x D | 6-3/4 in x 14 in x 4-1/2 in |
| Filter Included | No |
| Disconnect Switch | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
