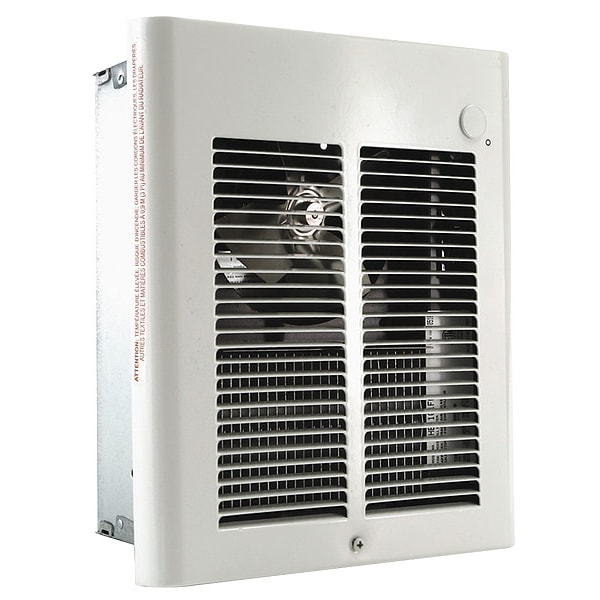

Recessed Electric Wall-Mount Heater, Recessed or Surface, 1500/750, 2000/1000 W, 208/240V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Commercial/Industrial |
| Watts | 1500/750, 2000/1000 |
| BtuH | 5118/2560,6824/3413 |
| Heater Voltage | 208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 9-1/2" |
| Color | White |
| Amps AC | 7.2/3.6, 8.3/4.2 |
| Wall Opening Depth | 3-3/4" |
| Grille Width | 10-5/8 in |
| Grille Height | 12-1/2 in |
| Hz | 60 |
| Wall Opening Height | 11-1/4 in |
| Housing Width | 9-1/2 in |
| Standards | ETL Listed |
| Grille Depth | 1 in |
| Item | Recessed Electric Wall-Mount Heater |
| Air Temp. Rise | 79 deg F |
| Features | Fan Time Delay, Double Pole Thermostat |
| Housing Depth | 3-3/4 in |
| Manufacturers Warranty Length | 1 yr |
| Housing Height | 11-1/4 in |
| Finish | Powder Coated |
| Grille Material | Steel |
| Mounting Type | Recessed or Surface |
| Voltage | 208/240V AC |
| Phase | 1 |
| Air Flow | 65 cfm |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Amperage | 3.6 A/7.2 A, 4.2 A/8.3 A |
| Tamper Resistant | No |
| Fan Only Operation | No |
| Rough-In Depth | 3-3/4 in |
| Thermostat Included | Unit-Mounted |
| Voltage, Phase | 208/240V AC, 1-phase |
| Hold Function | No |
| Disconnect Switch | Yes |
| Housing Material | Steel |
| Automatic Fan Delay (On/Off) | Yes |
| Wattage Output | 1000 W/2000 W, 750 W/1500 W |
| Remote Control Functions | No Remote Control Included |
| Minimum Mounting Distance from Ceiling | 12 in |
| Frequency | 60 Hz |
| Rough-In Dimensions - H x W x D | 11-1/4 in x 9-1/2 in x 3-3/4 in |
| Programming Capability | Not Programmable |
| Smart Connectivity | No Connectivity |
| Rough-In Height | 11-1/4 in |
| Filter Included | No |
| Building Management System Compatible | No |
| Thermostat Contact Type | Double Pole |
| Wattage Field Convertible | Yes |
| Heater Mounting Position | Horizontal Burn |
| Heating Capacity | 2,560/5,118 BtuH, 3,413/6,824 BtuH |
| Control Type | Mechanical Selector Dial |
| Heating Method | Fan Forced |
| Thermal Overheat Protection | Manual Reset |
| Grille Color | White |
| Occupancy Sensor | No |
| Grille Finish | Powder Coated |
| Minimum Mounting Height from Floor | 4 in |
| Setback Control | No |
| Rough-In Width | 9-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
