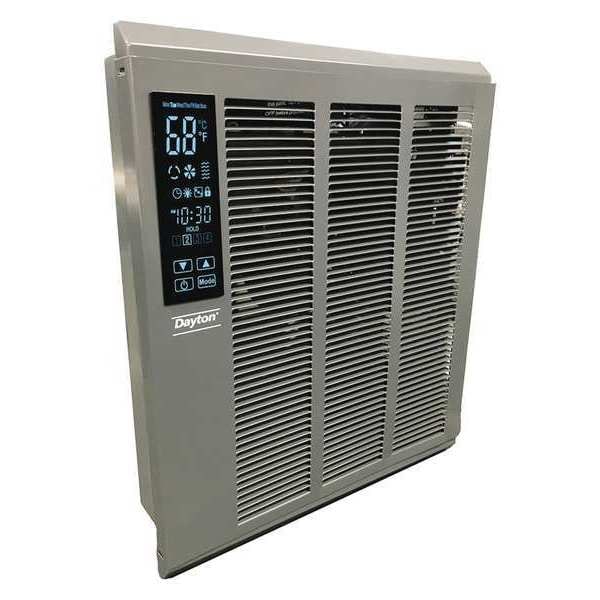

Recessed Electric Wall-Mount Heater, Recessed or Surface, 4000 W, 240V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Programmable Touchscreen |
| Watts | 4000 |
| BtuH | 13,650 |
| Heater Voltage | 240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-3/8" |
| Color | White |
| Amps AC | 7.5 to 16.7 |
| Wall Opening Depth | 3-1/2" |
| Features | Digital Thermostat with 4 Periods Per Day, Automatically Adjusts Wattage Output, Hold Function, Lockout Feature, No Ducting or Plumbing Required, BMS Compatible, Remote Control |
| Grille Depth | 1-3/8 in |
| Air Temp. Rise | 100 deg F |
| Grille Width | 14-3/8 in |
| Wall Opening Height | 18-1/4 in |
| Item | Recessed Electric Wall-Mount Heater |
| Standards | cETL Listed |
| Finish | Powder Coated |
| Grille Height | 18-1/4 in |
| Housing Depth | 3-3/4 in |
| Grille Material | Steel |
| Housing Height | 18-1/4 in |
| Mounting Type | Recessed or Surface |
| Housing Width | 14-3/8 in |
| Manufacturers Warranty Length | 1 yr (On Unit), 5 yr (On Element) |
| Hz | 60 |
| Voltage | 240V AC |
| Phase | 1 |
| Air Flow | 100 cfm |
| Tamper Resistant | Yes |
| Setback Control | Yes |
| Hold Function | Yes |
| Grille Finish | Powder Coated |
| Rough-In Width | 14-3/8 in |
| Building Management System Compatible | Yes |
| Fan Only Operation | No |
| Wattage Field Convertible | Yes |
| Rough-In Depth | 3-1/2 in |
| Heating Capacity | 13,650 BtuH |
| Smart Connectivity | No Connectivity |
| Voltage, Phase | 240V AC, 1-phase |
| Grille Color | White |
| Frequency | 60 Hz |
| Remote Control Functions | On/Off Control, Temp |
| Minimum Mounting Height from Floor | 12 in |
| Thermostat Contact Type | Double Pole |
| Rough-In Dimensions - H x W x D | 18-1/4 in x 14-3/8 in x 3-1/2 in |
| Rough-In Height | 18-1/4 in |
| Heating Method | Fan Forced |
| Disconnect Switch | Yes |
| Minimum Mounting Distance from Ceiling | 36 in |
| Programming Capability | 5-2 |
| Thermal Overheat Protection | Manual Reset |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Filter Included | No |
| Housing Material | Steel |
| Amperage | 7.5 A to 16.7 A |
| Occupancy Sensor | No |
| Wattage Output | 4000 W |
| Thermostat Included | Unit-Mounted |
| Heater Mounting Position | Horizontal Burn |
| Control Type | Touch Screen |
| Automatic Fan Delay (On/Off) | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
