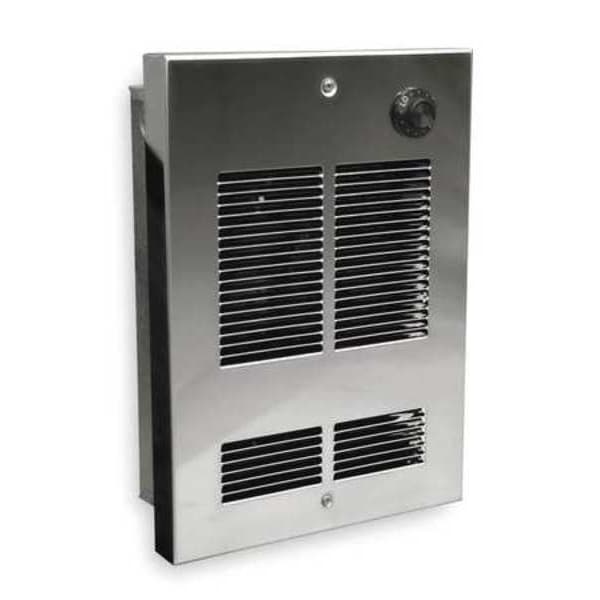

Recessed Electric Wall-Mount Heater, Shallow Recessed or Surface, 1000 W, 120V AC, Stainless Steel
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Electric Heater Item | Electric Wall Heater |
| Electric Heater Type | Light Commercial/Residential Shallow Wall |
| Watts | 1000 |
| BtuH | 3413 |
| Heater Voltage | 120 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 9-1/4" |
| Color | Stainless Steel |
| Amps AC | 8.3 |
| Wall Opening Depth | 2-1/2" |
| Standards | ETL Listed |
| Air Temp. Rise | 90 deg F |
| Wall Opening Height | 12-1/2 in |
| Features | Thermal Cut Out with Indicator Light, One Time Thermal Fuse, Double Pole Thermostat |
| Finish | Stainless steel |
| Mounting Type | Shallow Recessed or Surface |
| Item | Recessed Electric Wall-Mount Heater |
| Grille Height | 14-1/2 in |
| Hz | 60 |
| Grille Material | Steel |
| Housing Width | 9-1/4 in |
| Grille Width | 10-1/2 in |
| Manufacturers Warranty Length | 1 yr |
| Housing Depth | 2-1/2 in |
| Housing Height | 12-1/2 in |
| Grille Depth | 1-1/4 in |
| Voltage | 120V AC |
| Air Flow | 50 cfm |
| Phase | 1 |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Amperage | 8.3 A |
| Smart Connectivity | No Connectivity |
| Heating Method | Fan Forced |
| Disconnect Switch | Yes |
| Filter Included | No |
| Voltage, Phase | 120V AC, 1-phase |
| Rough-In Dimensions - H x W x D | 12-1/2 in x 9-1/4 in x 2-1/2 in |
| Heater Mounting Position | Horizontal Burn |
| Hold Function | No |
| Housing Material | Steel |
| Building Management System Compatible | No |
| Thermostat Included | Unit-Mounted |
| Setback Control | No |
| Rough-In Depth | 2-1/2 in |
| Heating Capacity | 3,413 BtuH |
| Wattage Field Convertible | No |
| Frequency | 60 Hz |
| Programming Capability | Not Programmable |
| Remote Control Functions | No Remote Control Included |
| Rough-In Width | 9-1/4 in |
| Thermostat Contact Type | Double Pole |
| Minimum Mounting Distance from Ceiling | 12 in |
| Grille Finish | Stainless Steel |
| Rough-In Height | 12-1/2 in |
| Minimum Mounting Height from Floor | 4-1/2 in |
| Thermal Overheat Protection | One-Time Thermal Fuse |
| Wattage Output | 1000 W |
| Fan Only Operation | No |
| Automatic Fan Delay (On/Off) | Yes |
| Grille Color | Gray |
| Tamper Resistant | No |
| Control Type | Mechanical Selector Dial |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
