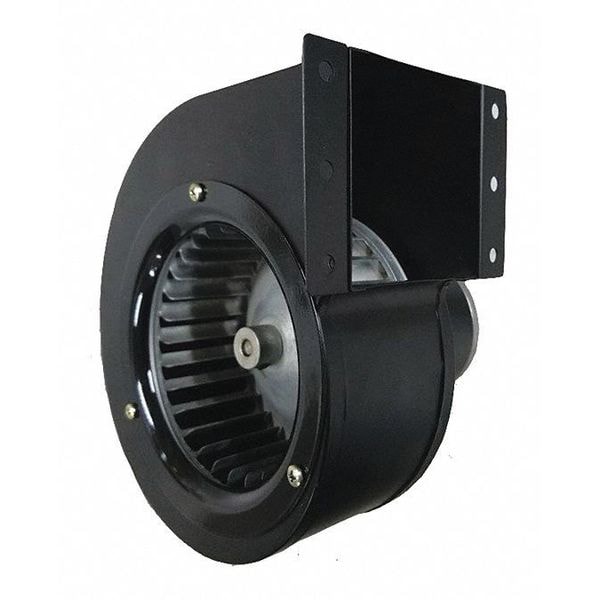

Rectangle OEM Replacement Direct Drive Blower, 5-1/4 in Wheel Dia, 134 cfm, 115V AC, 1 Phase
| CFM @ 0.100-In. SP | 126 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.63/0.55 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 4-1/2 in |
| Number of Speeds | 1 |
| Overall Height | 8 in |
| Overall Width | 5-11/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Overall Depth | 7-7/16 in |
| CFM @ 0.500-In. SP | 79 |
| Item | OEM Blower |
| Mounting Position | All Position |
| Motor Enclosure | Open Dripproof |
| Dimension A | 7-7/16 in |
| CFM @ 0.300-In. SP | 107 |
| Dimension E | 8 in |
| Dimension L | 3-15/16 in |
| CFM @ 0.000-In. SP | 134 |
| Dimension K | 3-1/8 in |
| Dimension J | 4-5/8 in |
| Housing Color | Black |
| CFM @ 0.200-In. SP | 117 |
| Dimension M | 2-3/8 in |
| Max. Ambient Temp. | 104 deg F |
| Dimension C | 5-5/16 in |
| Motor Insulation | Class B |
| Dimension F | 3-5/16 in |
| Hz | 50/60 |
| Blower Wheel Width | 2-1/2 in |
| Housing Finish | Baked Enamel |
| Outlet Height | 3-1/8 in |
| Wheel Type | Forward-Curved |
| Max. Inlet Temp. | 104 deg F |
| Dimension D | 3-1/8 in |
| Lead Length | 20 in |
| CFM @ 0.400-In. SP | 96 |
| Bearing Type | Ball |
| Outlet Width | 3 in |
| Dimension B | 8 in |
| RPM | 1350/1550 |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Voltage | 115 |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 6.000 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| Airflow @ 0.400 in SP | 96 cfm |
| Airflow @ 2.500 in SP | Not Applicable |
| Includes Motor | Yes |
| Housing Height | 8 in |
| Maximum Ambient Temperature | 104 deg F |
| Motor Horsepower | 1/70 hp |
| Includes Drive Package | Not Applicable |
| Nameplate Voltage | 115V AC |
| Airflow @ 3.000 in SP | Not Applicable |
| For Location | Indoor |
| AMCA Fan Class | Not Rated |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Airflow @ 1.500 in SP | Not Applicable |
| Frequency | 50/60 Hz |
| Thermal Overload Protection | Yes |
| Airflow @ 0.100 in SP | 126 cfm |
| Minimum Fan Speed | 0 RPM |
| Includes Mounting Hardware | No |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 0.750 in SP | Not Applicable |
| Mount Type | All Position |
| Outlet Shape | Rectangular |
| Manufacturer Warranty Length | 1 yr Limited |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Inlet Diameter | 4-1/2 in |
| Flange Size | 4-5/8 in W x 3-1/8 in H |
| Wheel Material Finish | Galvanized |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 4.000 in SP | Not Applicable |
| Motor Insulation Class | B |
| Maximum Fan Speed | 1,550 rpm |
| Assembly | Assembled |
| Sound Level | Not Rated |
| Wheel Width | 2-1/2 in |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Spark Resistant Construction Type | Not Rated |
| For High-Static Pressure Applications | No |
| Housing Width | 5-11/16 in |
| Minimum Ambient Temperature | 14 deg F |
| Speed Controllable | No |
| Airflow @ 2.000 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Mounting Orientation | Multiposition |
| Replacement For | Not Applicable |
| Number of Inlets | 1 |
| Airflow @ 0.125 in SP | Not Applicable |
| Wheel Diameter | 5-1/4 in |
| OEM Replacement | Yes |
| Airflow @ 0.000 in SP | 134 cfm |
| Hazardous Location Specification | Not Applicable |
| For Air Type | Clean Air |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Airflow @ 10.00 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| High-Efficiency Motor | No |
| Airflow @ 4.500 in SP | Not Applicable |
| Market | Commercial, Industrial, Residential |
| Flange Type | Flanged |
| Maximum Static Pressure | 0.5 in wc |
| Motor Duty Class | Continuous |
| Shaft Diameter | 8 mm |
| Compatible Speed Control | No |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Rotation | CW |
| Motor IP Rating | IP20 |
| Housing Depth | 7-7/16 in |
| Brake Horsepower | 1/70 hp |
| Motor Speed | 1,550 rpm |
| Airflow @ 0.500 in SP | 79 cfm |
| Chemical Resistant | No |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Corrosion Resistant | No |
| Hazardous Location Application | No |
| Airflow @ 0.250 in SP | 116 cfm |
| Housing Material Grade | SPCC |
| Electrical Connection | Wire Leads |
| Current | 0.63/0.55 A |
| Wheel Material | Steel |
| Mounting | All Position |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
