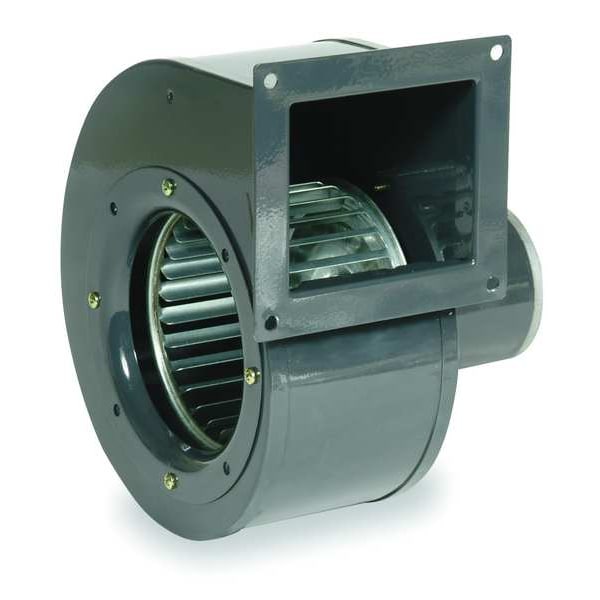

Rectangle Replacement OEM Blower, 273 cfm, 5-1/8 in Whl Dia, 1 Phase, Direct Drive, 115VAC, 1/20 hp
| CFM @ 0.100-In. SP | 245 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.77 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 4-5/8 in |
| Number of Speeds | 1 |
| Overall Height | 9-7/8 in |
| Overall Width | 7-11/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 5-1/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Blower Wheel Width | 3-11/32 in |
| Housing Color | Gray |
| Dimension K | 5 in |
| Dimension A | 8-7/8 in |
| Dimension F | 3-5/16 in |
| RPM | 1,640 |
| Hz | 50/60 |
| Dimension E | 9-7/8 in |
| CFM @ 0.500-In. SP | 135 |
| Replaces | 4C447 |
| Max. Inlet Temp. | 104 deg F |
| Overall Depth | 8-7/8 in |
| Bearing Type | Ball |
| CFM @ 0.300-In. SP | 210 |
| Dimension C | 7-11/16 in |
| Motor Insulation | Class B |
| Max. Ambient Temp. | 104 deg F |
| Item | OEM Blower |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.200-In. SP | 230 |
| Lead Length | 13 in |
| Outlet Height | 3-5/8 in |
| Dimension L | 4-7/8 in |
| Mounting Position | All Position |
| Dimension M | 4-3/8 in |
| CFM @ 0.400-In. SP | 183 |
| Dimension J | 5-1/2 in |
| Motor Enclosure | Open |
| CFM @ 0.000-In. SP | 273 |
| Dimension B | 10-7/16 in |
| Outlet Width | 4-1/8 in |
| Wheel Type | Forward-Curved |
| Dimension D | 4-1/4 in |
| Housing Finish | Enamel |
| OEM Replacement | Yes |
| Manufacturer Warranty Length | 1 yr Limited |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 12.00 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 273 cfm |
| Airflow @ 0.400 in SP | 183 cfm |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Motor Speed | 1,640 rpm |
| Speed Controllable | No |
| Replacement For | 4C447 |
| Maximum Static Pressure | 0.625 in wc |
| For High-Static Pressure Applications | No |
| Inlet Diameter | 4-5/8 in |
| Airflow @ 10.00 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Housing Height | 9-7/8 in |
| Brake Horsepower | 1/20 hp |
| Motor Duty Class | Continuous |
| Airflow @ 2.500 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Nameplate Voltage | 115V AC |
| AMCA Fan Class | Not Rated |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Wheel Diameter | 5-1/8 in |
| Flange Size | 5-1/2 in W x 5 in H |
| Market | Commercial, Industrial, Residential |
| Airflow @ 4.500 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 0.100 in SP | 245 cfm |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 224 cfm |
| Corrosion Resistant | No |
| Housing Material Grade | SPCC |
| Hazardous Location Application | No |
| Motor Location | Out of Airstream |
| High-Efficiency Motor | No |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Sound Level | Not Rated |
| Maximum Inlet Air Temperature | 104 deg F |
| Wheel Material Finish | Galvanized |
| Chemical Resistant | No |
| Outlet Diameter | Not Applicable |
| Features | Open Motor Has Cast-Aluminum End Shields for Greater Heat Dissipation, Resulting in Less Downtime and Longer Service Life, This Dayton Dynamically Balanced Blower Mounts in any Position and Operates with Minimal Noise and Vibration, to Maintain cfm at Higher Static Pressures |
| Includes Mounting Hardware | No |
| Electrical Connection | Wire Leads |
| Motor Insulation Class | B |
| Motor Frame Designation | 3.3" PSC Motor |
| Housing Material Gauge | 1 mm |
| Motor Type | Permanent Split Capacitor |
| Housing Width | 7-11/16 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Current | 0.77 A |
| Airflow @ 0.125 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Compatible Speed Control | No |
| For Air Type | Clean Air |
| Mounting Orientation | Multiposition |
| Airflow @ 9.000 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Number of Inlets | 1 |
| Minimum Fan Speed | 0 RPM |
| Motor IP Rating | IP20 |
| Assembly | Assembled |
| Rotation | CW |
| Wheel Width | 3-5/16 in |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Shaft Diameter | 8 mm |
| Minimum Ambient Temperature | 14 deg F |
| Housing Depth | 8-7/8 in |
| Motor Horsepower | 1/20 hp |
| Maximum Fan Speed | 1,640 rpm |
| Flange Type | Flanged |
| Frequency | 50/60 Hz |
| For Location | Indoor |
| Mount Type | All Position |
| Airflow @ 4.000 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Airflow @ 0.500 in SP | 135 cfm |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
