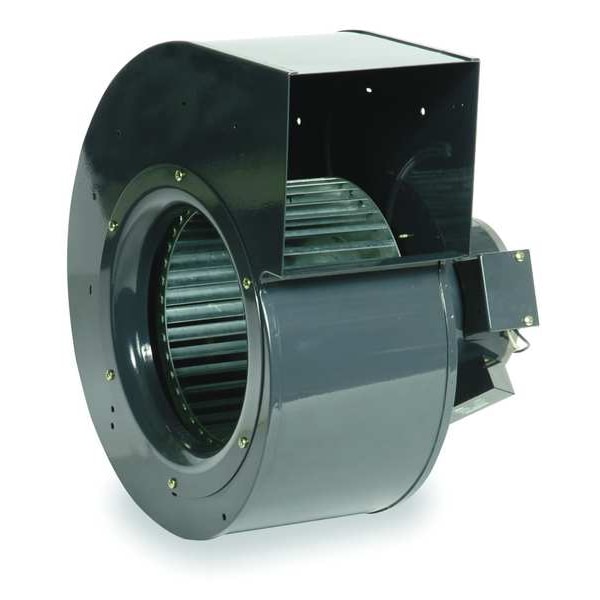

Rectangular OEM Blower, 1020 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 950 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 3.5 |
| Housing Material | Steel |
| Includes | Not Applicable |
| Inlet Dia. | 7 in |
| Number of Speeds | 1 |
| Overall Height | 14-7/8 in |
| Overall Width | 11-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Wheel Diameter | 8-5/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension J | 2-1/4 in |
| CFM @ 0.400-In. SP | 820 |
| Outlet Height | 5-1/2 in |
| Dimension C | 11-5/16 in |
| Dimension B | 10 in |
| Mounting Position | All Position |
| Bearing Type | Ball |
| Wheel Type | Forward-Curved |
| Dimension E | 14-7/8 in |
| CFM @ 0.300-In. SP | 850 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.000-In. SP | 965 |
| Overall Depth | 13-1/8 in |
| Motor Enclosure | Open |
| Max. Ambient Temp. | 104 deg F |
| Motor Insulation | Class B |
| CFM @ 0.500-In. SP | 750 |
| Dimension D | 7-5/16 in |
| Lead Length | 13 in |
| Max. Inlet Temp. | 104 deg F |
| CFM @ 0.600-In. SP | 710 |
| Item | OEM Blower |
| Dimension A | 13-1/8 in |
| Hz | 50/60 |
| Dimension F | 5-1/16 in |
| Housing Finish | Enamel |
| Outlet Width | 7-3/16 in |
| Housing Color | Gray |
| CFM @ 0.200-In. SP | 910 |
| Replaces | 4C054 |
| RPM | 1,020 |
| Blower Wheel Width | 5-1/4 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| Airflow @ 6.000 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 7.000 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 10.00 in SP | Not Applicable |
| Compatible Speed Control | No |
| Shaft Diameter | 14 mm |
| Corrosion Resistant | No |
| Airflow @ 12.00 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 2.500 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Replacement For | 4C054 |
| Motor Horsepower | 0.2 HP |
| Airflow @ 0.400 in SP | 820 cfm |
| Outlet Diameter | Not Applicable |
| Electrical Connection | Wire Leads |
| Market | Commercial, Industrial, Residential |
| Spark Resistant Construction Type | Not Rated |
| Sound Level | Not Rated |
| Airflow @ 0.250 in SP | 873 cfm |
| Frequency | 50/60 Hz |
| Maximum Fan Speed | 1,020 rpm |
| For Air Type | Clean Air |
| Airflow @ 4.000 in SP | Not Applicable |
| Mount Type | All Position |
| Includes Motor | Yes |
| Airflow @ 0.750 in SP | Not Applicable |
| Flange Type | Non-Flanged |
| Outlet Shape | Rectangular |
| Wheel Bore Diameter | 14 mm |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 1.000 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| For High-Static Pressure Applications | No |
| Brake Horsepower | 0.2 HP |
| Airflow @ 4.500 in SP | Not Applicable |
| Motor Insulation Class | B |
| Housing Width | 11-1/2 in |
| Rotation | CW |
| Airflow @ 8.000 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Motor Speed | 1,080 rpm |
| Maximum Ambient Temperature | 104 deg F |
| AMCA Fan Class | Not Rated |
| Airflow @ 3.000 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| Features | the Dynamically Balanced Blower Provides Smooth and Quiet Operation, the Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures |
| Speed Controllable | No |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 0.125 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Minimum Fan Speed | 0 RPM |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.100 in SP | 950 cfm |
| Airflow @ 11.00 in SP | Not Applicable |
| Current | 3.5 A |
| Airflow @ 2.000 in SP | Not Applicable |
| Maximum Static Pressure | 1 in wc |
| For Location | Indoor |
| Wheel Diameter | 8-5/8 in |
| Housing Depth | 13-1/8 in |
| Airflow @ 0.000 in SP | 965 cfm |
| Airflow @ 0.375 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Inlet Diameter | 7 in |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 0.500 in SP | 750 cfm |
| Motor Frame Designation | 5" PSC motor |
| Hazardous Location Application | No |
| Chemical Resistant | No |
| Number of Inlets | 1 |
| Housing Material Gauge | 1.2 mm |
| Wheel Width | 5-1/4 in |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Assembly | Assembled |
| Housing Material Grade | SPCC |
| Thermal Overload Protection | Yes |
| Motor Location | Out of Airstream |
| OEM Replacement | Yes |
| Housing Height | 14-7/8 in |
| Motor Duty Class | Continuous |
| Housing Material Finish | Enamel |
| Wheel Material Finish | Galvanized |
| Includes Drive Package | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
